Laser Marking Machine Desktop

Laser Marking Machine Desktop

Laser Marking Machine Desktop

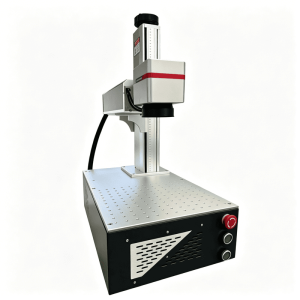

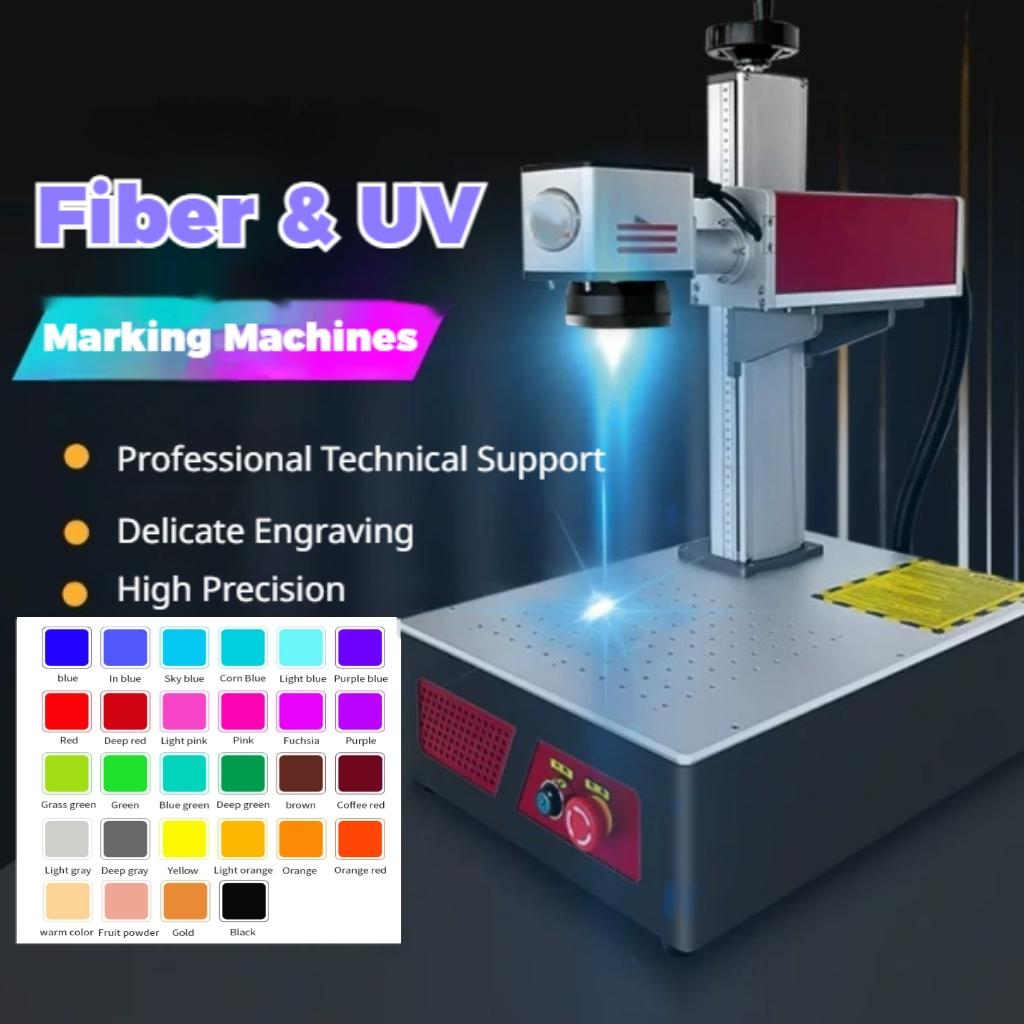

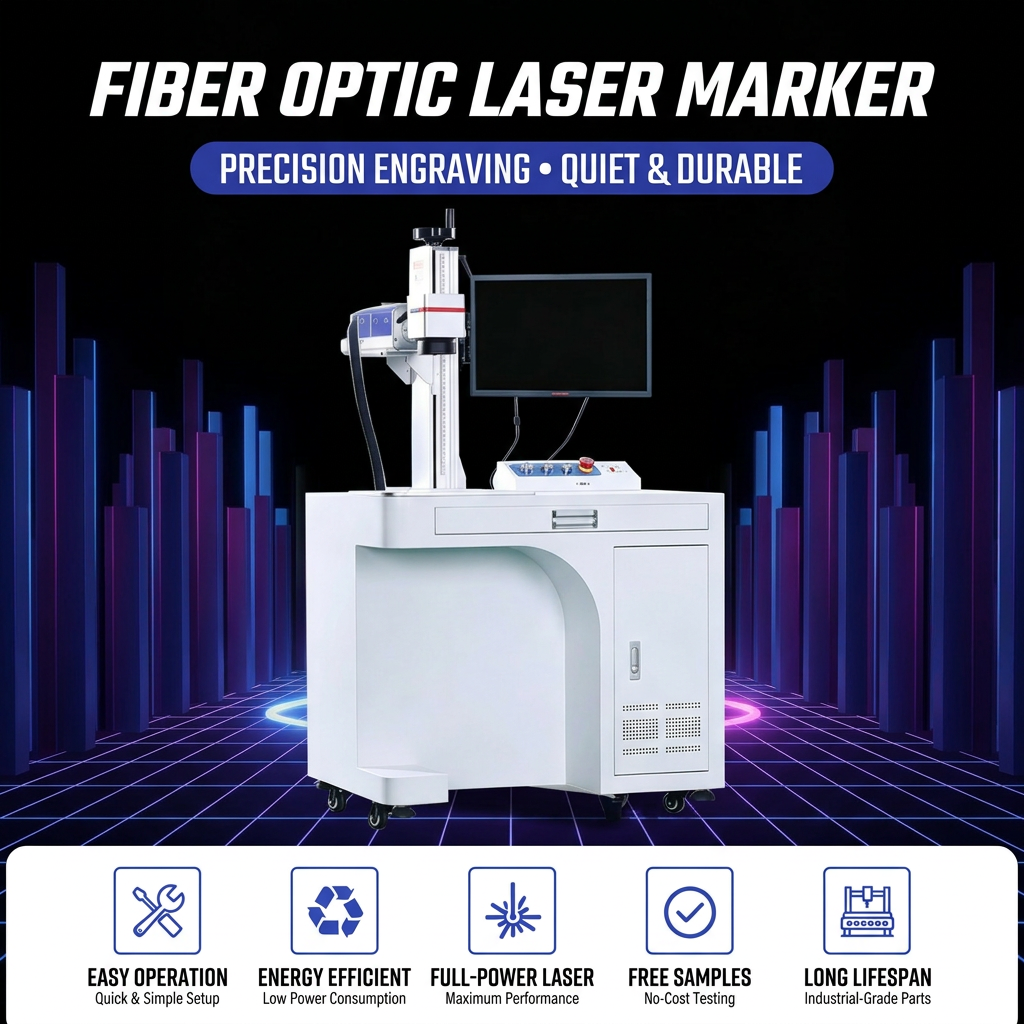

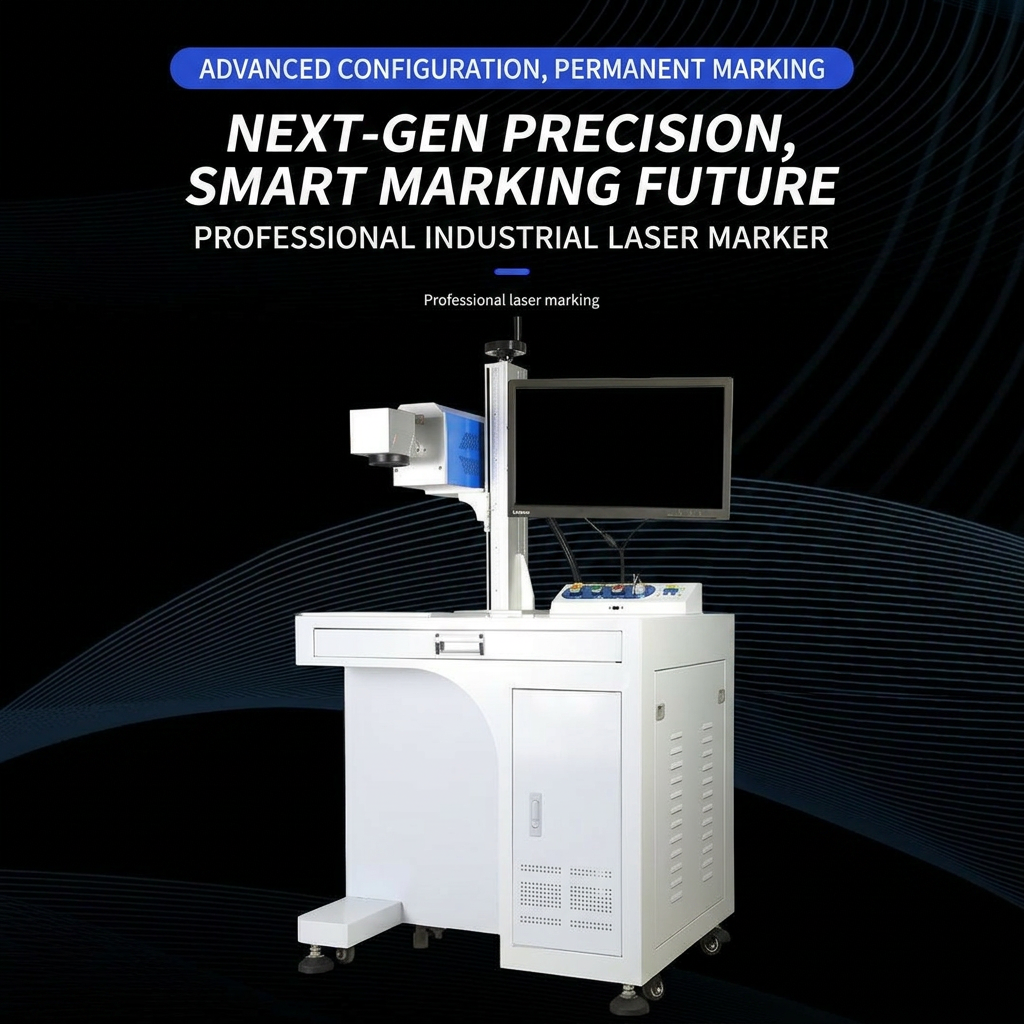

Desktop Laser Marking Machine Precision Fiber Laser System

Mini Fiber Laser Marker Precise Engraver for Workshop Hardware & Crane Safety Component Permanent Marking
Optional
High-precision marking
Fast engraving speed
Permanent clear results
Suitable for fine materials
Description

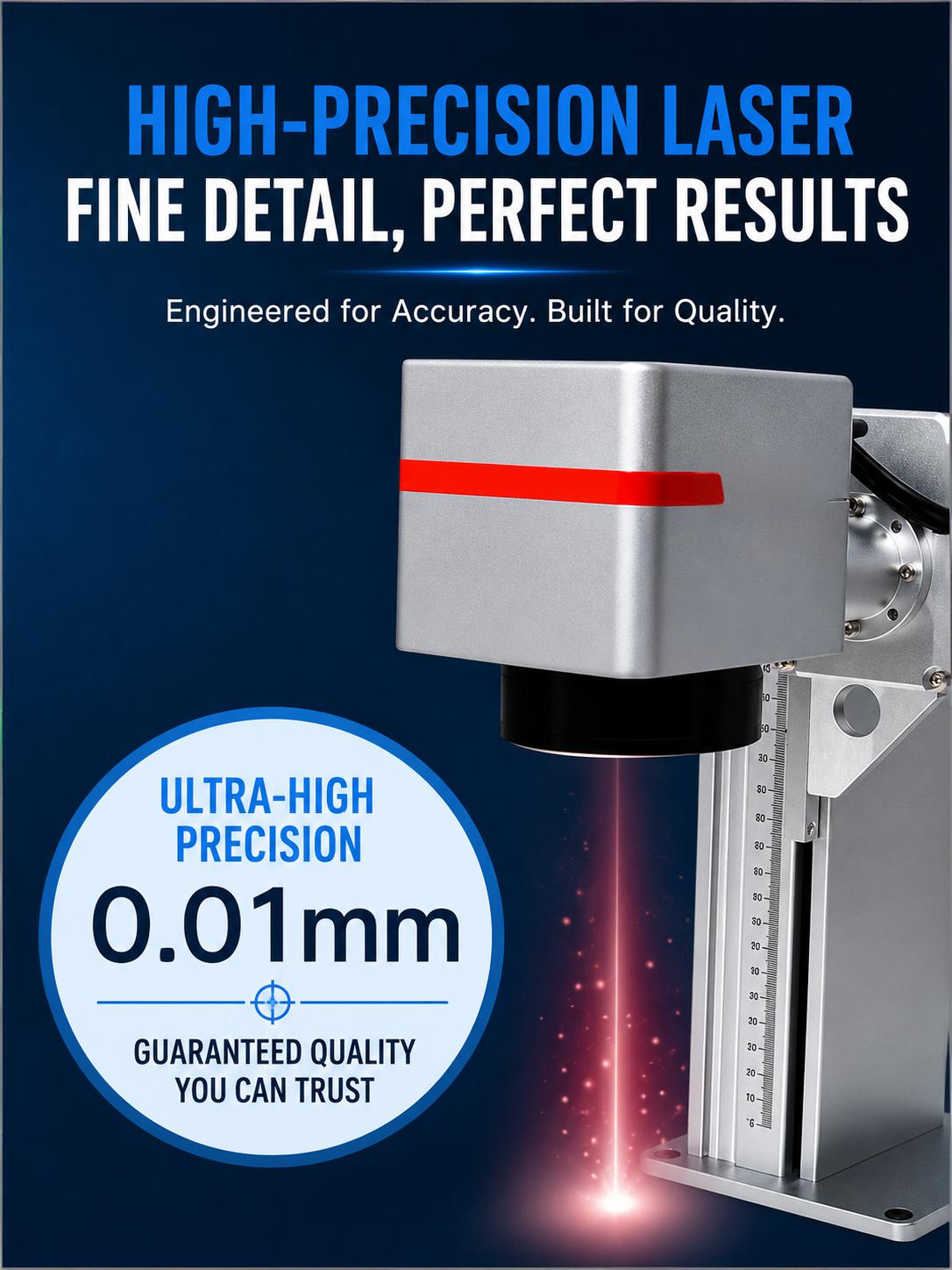

High-Precision Fiber Laser Marking:This Laser Marking Machine uses a 1064 nm fiber laser for precise and stable marking. It supports a minimum line width of about 0.02 mm and repeatability of ±0.02 mm, making it suitable for fine graphics, logos, symbols, text, and monochrome Gobo or light-sheet processing.

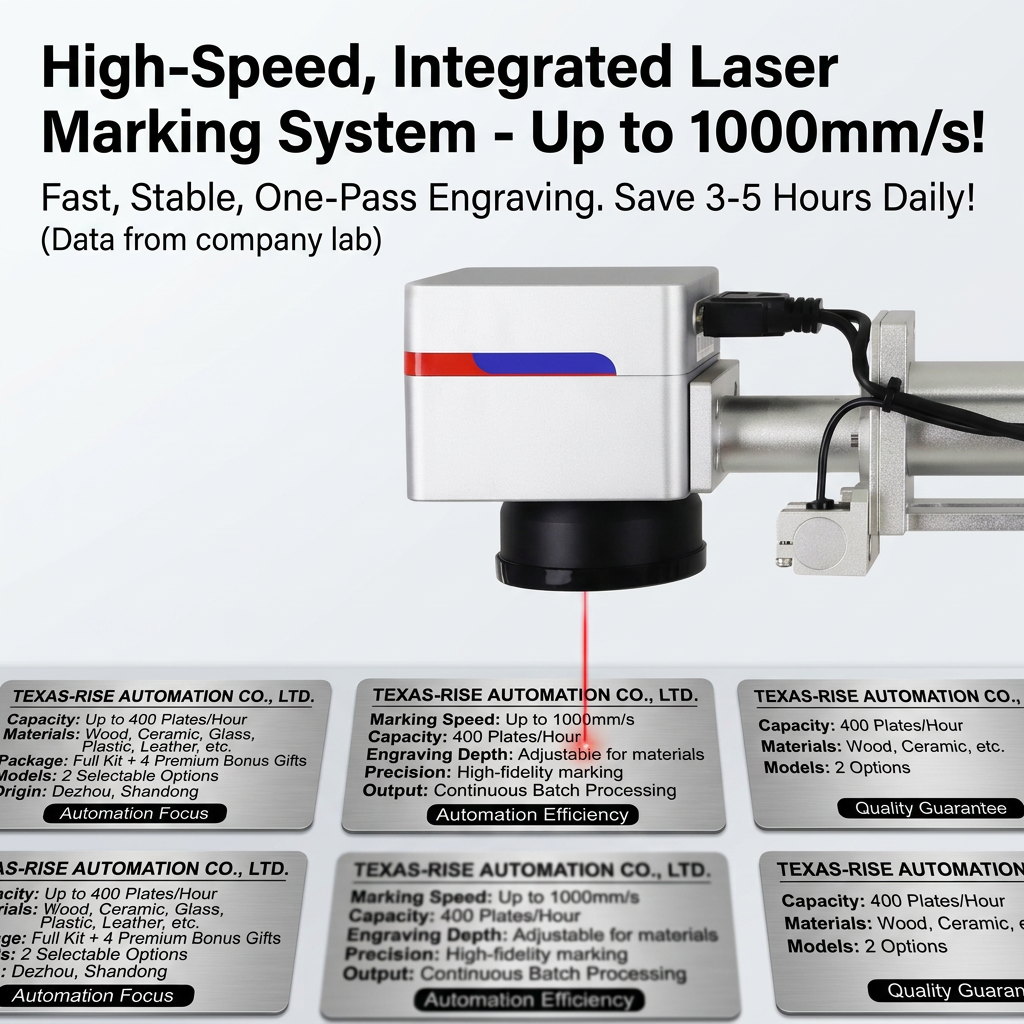

Fast Marking Speed | Efficient Production:Designed for fast industrial processing, the machine can reach a marking speed of up to 800 characters per second under specified conditions. The fiber laser provides permanent marking results without mechanical contact, helping improve efficiency for sample production, small-batch customization, and repeated marking tasks.
Wide Software & File Compatibility:The Laser Marking Machine supports common design and production software such as AutoCAD, CorelDRAW, and Adobe Illustrator. It can process AI, DXF, DST, PLT, BMP, JPG and other common file formats, allowing users to prepare logos, graphics, barcodes, QR codes, serial numbers, and text directly from digital files.
Ideal for Monochrome Gobo & Industrial Applications:This machine is especially suitable for monochrome light sheets and Gobo lens production. It provides fine marking quality and fast processing, making it useful for projector manufacturers, advertising companies, safety projection suppliers, industrial marking, custom logo processing, and sample development.

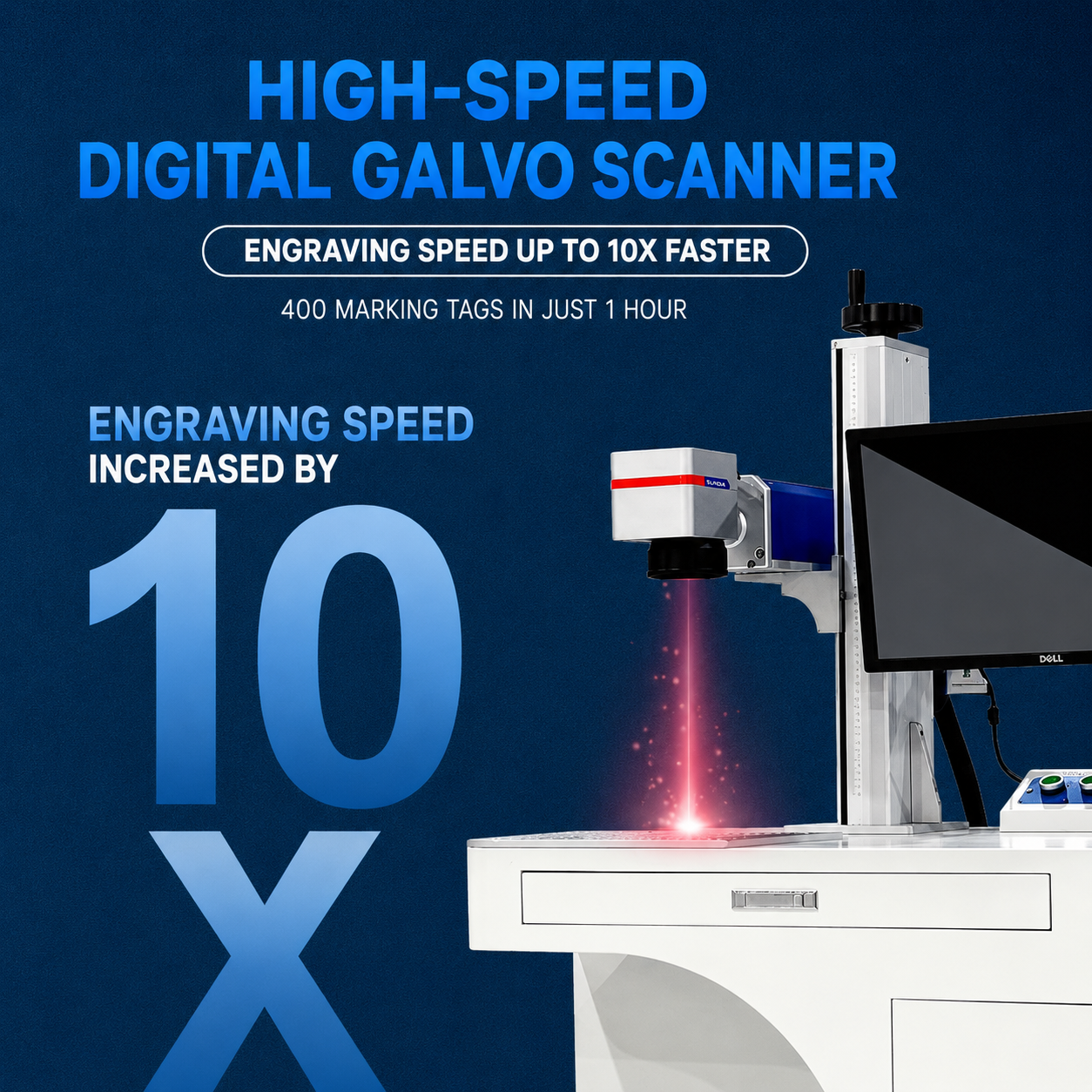

Stable Performance | Long Laser Service Life:Equipped with fiber laser technology, a high-speed marking control card, and galvanometer scanning system, the machine delivers stable performance and clear permanent results. The product brochure states a laser service life of up to approximately 100,000 hours, making it suitable for long-term workshop and industrial use.
Related Parameters

Product Name:Fiber Laser Marking Machine
Laser Power:20W / 30W / 50W / 100W
Laser Type:Fiber Laser
Laser Wavelength:1064 nm
Input Voltage:AC220V ±10%, 50Hz
Total Power Consumption:<500W
Marking Range:70 × 70 mm to 300 × 300 mm
Adjustable Frequency Range:10–100 kHz
Beam Quality: M²<2
Marking Speed:800 characters/s (Roman font, 1 mm height)
Marking Depth:≤2 mm
Repeatability:±0.02 mm
Minimum Line Width :0.02 mm
Minimum Character Size :0.2 mm
Cooling Method Air: Cooling
Supported Formats: AI / DXF / DST / PLT / BMP / JPG / DRC
Z-Axis / Upgrade Height:100–500 mm
Working Temperature:15–35°C
Machine Dimensions:1200 × 900 × 650 mm
Machine Weight :≤50 kg
Applicable Material:Monochrome light sheets / monochrome Gobo lenses
Compatible Software:AutoCAD / CorelDRAW / Adobe Illustrator
Laser Service Life:Up to 100,000 hours
What materials is this Laser Marking Machine suitable for?

This machine is mainly designed for monochrome light sheets and monochrome Gobo lens marking. The fiber laser provides fine marking quality and fast processing for custom logos, text, symbols, and industrial graphics.

What file formats does the Laser Marking Machine support?

It supports AI, DXF, DST, PLT, BMP, JPG, DRC, and other common design file formats. The machine can also work with software such as AutoCAD, CorelDRAW, and Adobe Illustrator for preparing marking content.

What are the marking accuracy and working range?

The machine supports a marking range from 70 × 70 mm up to 300 × 300 mm, with repeatability of ±0.02 mm and a minimum line width of about 0.02 mm. These specifications make it suitable for detailed and precise marking work.
