Embedded Gobo Sign Projector for Floor Warnings

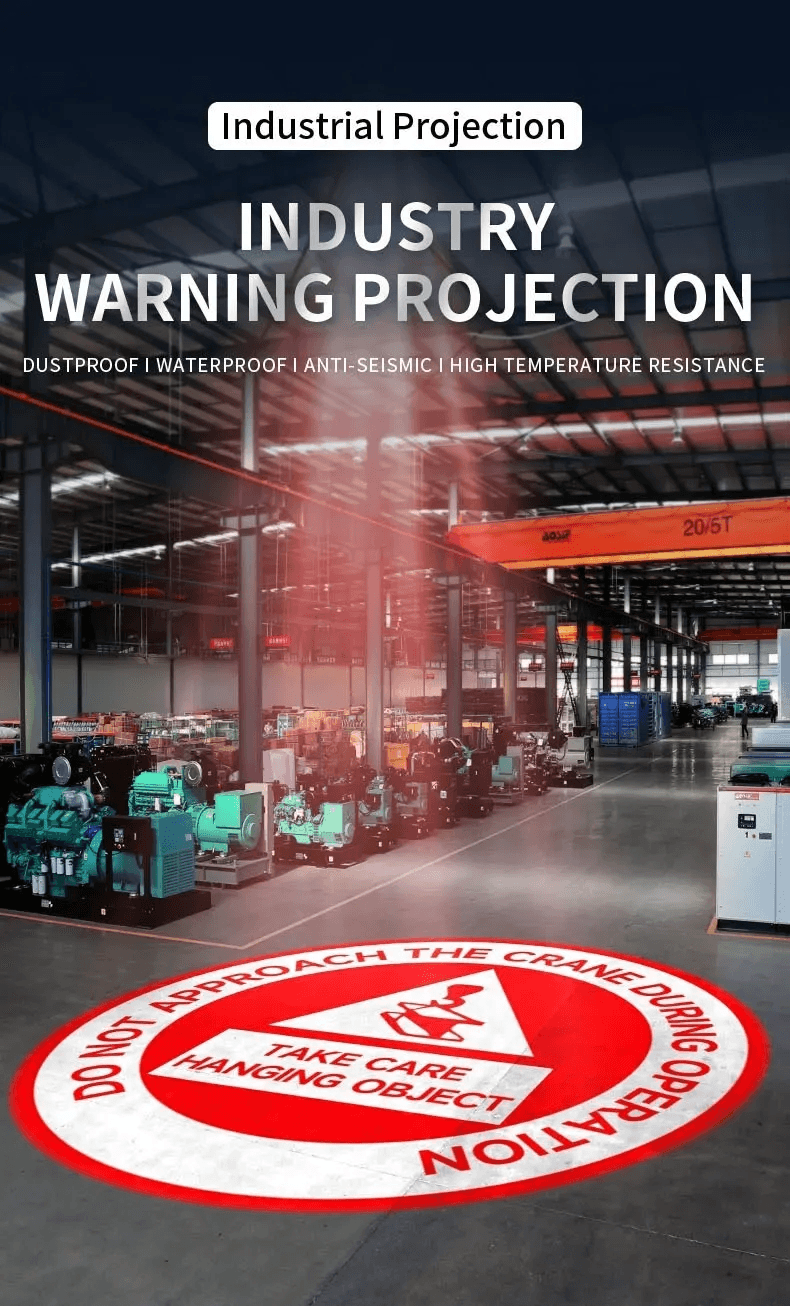

25W/55W Embedded Safety Sign Projector for Crane Zone and Factory Area Warning

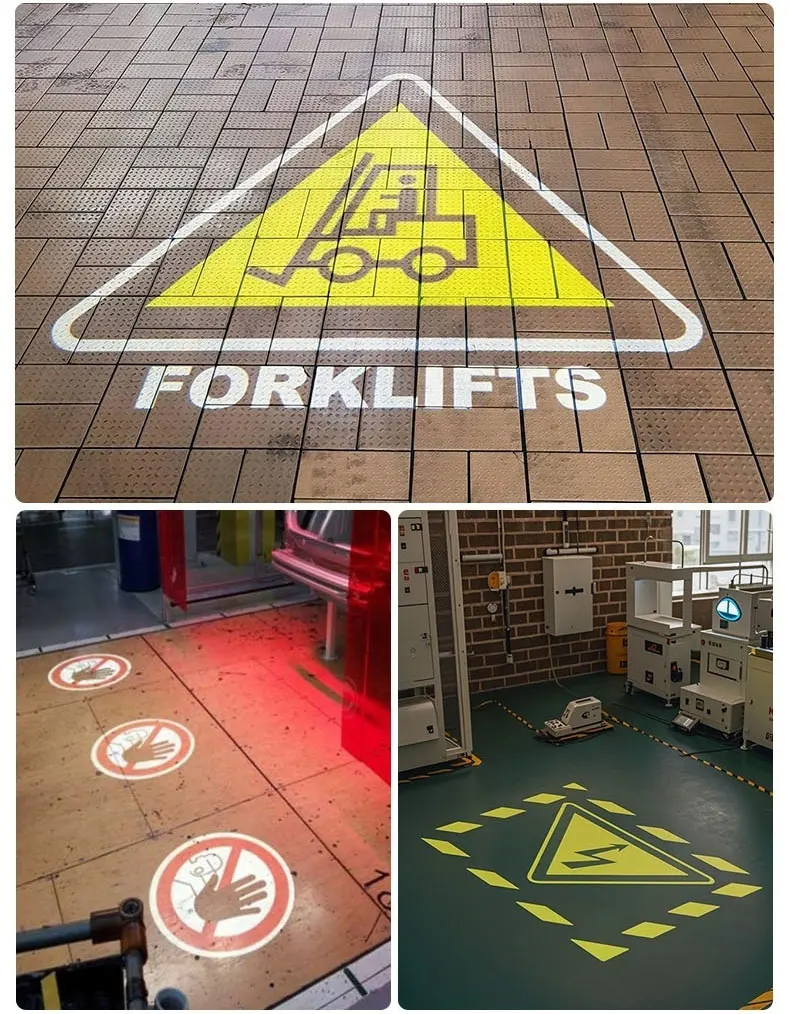

This 25W high-definition ground warning light projects durable signage for warehouse crane operations and workshop industrial safety.
Optional
OSRAM LED Chips
With Remote Control
Waterproof
Easy Recessed Installation
Description

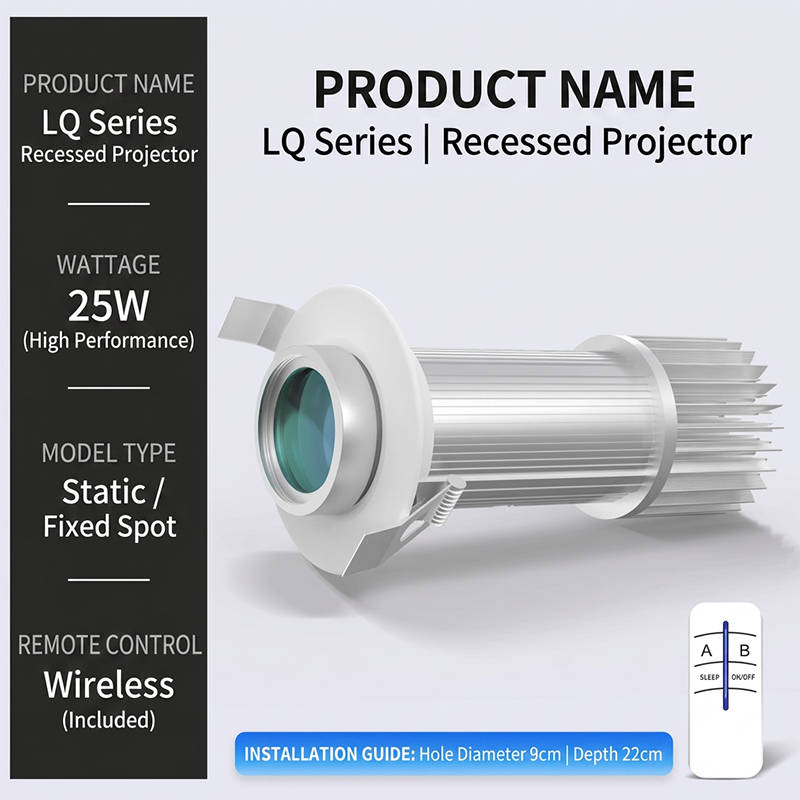

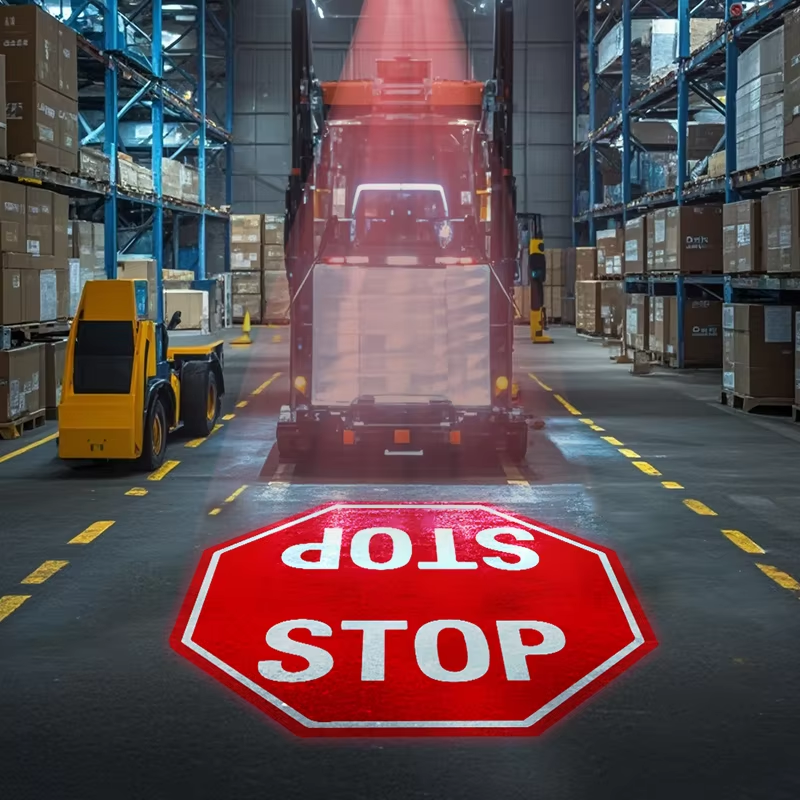

RECESSED INSTALLATION FOR A CLEAN LOOK – The Embedded Safety Sign Projector is designed for flush ceiling installation, projecting safety warning signs for crane zones and factory areas while keeping the installation neat and professional.
15W / 25W / 35W POWER OPTIONS – Available in 15W, 25W, and 35W versions for different installation environments. Recommended projection distances are approximately 1–4 m for 15W, 1–6 m for 25W, and 1–9 m for 35W.
OSRAM LED WITH LONG SERVICE LIFE – Equipped with a high-power OSRAM LED light source and an expected service life of 50,000 hours or more, providing stable illumination for long-term safety warning sign projection.

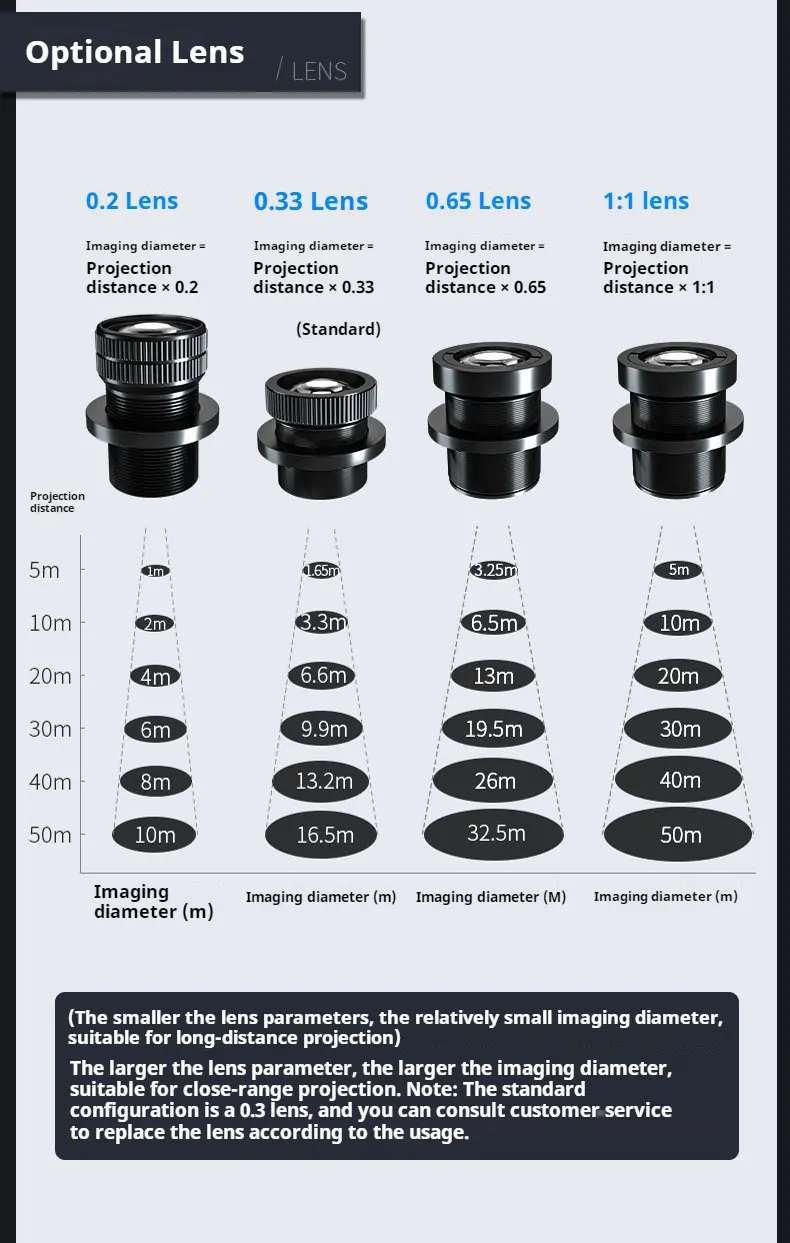

MULTIPLE LENS OPTIONS FOR FLEXIBLE PROJECTION – The Embedded Safety Sign Projector supports optional 11°, 17°, 25°, and 36° lenses, allowing different projection sizes and coverage areas according to ceiling height and installation distance.

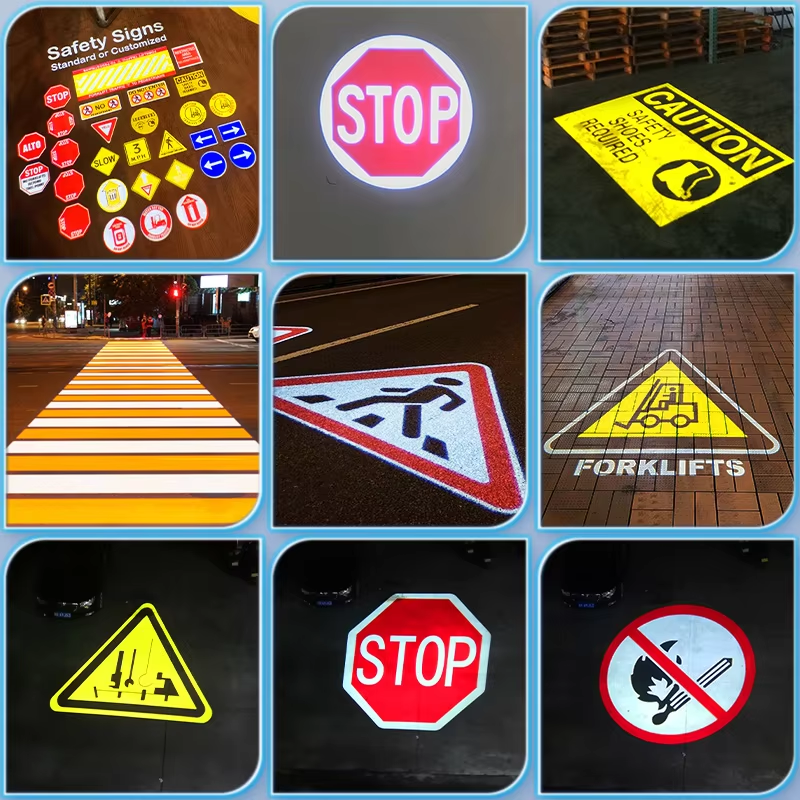

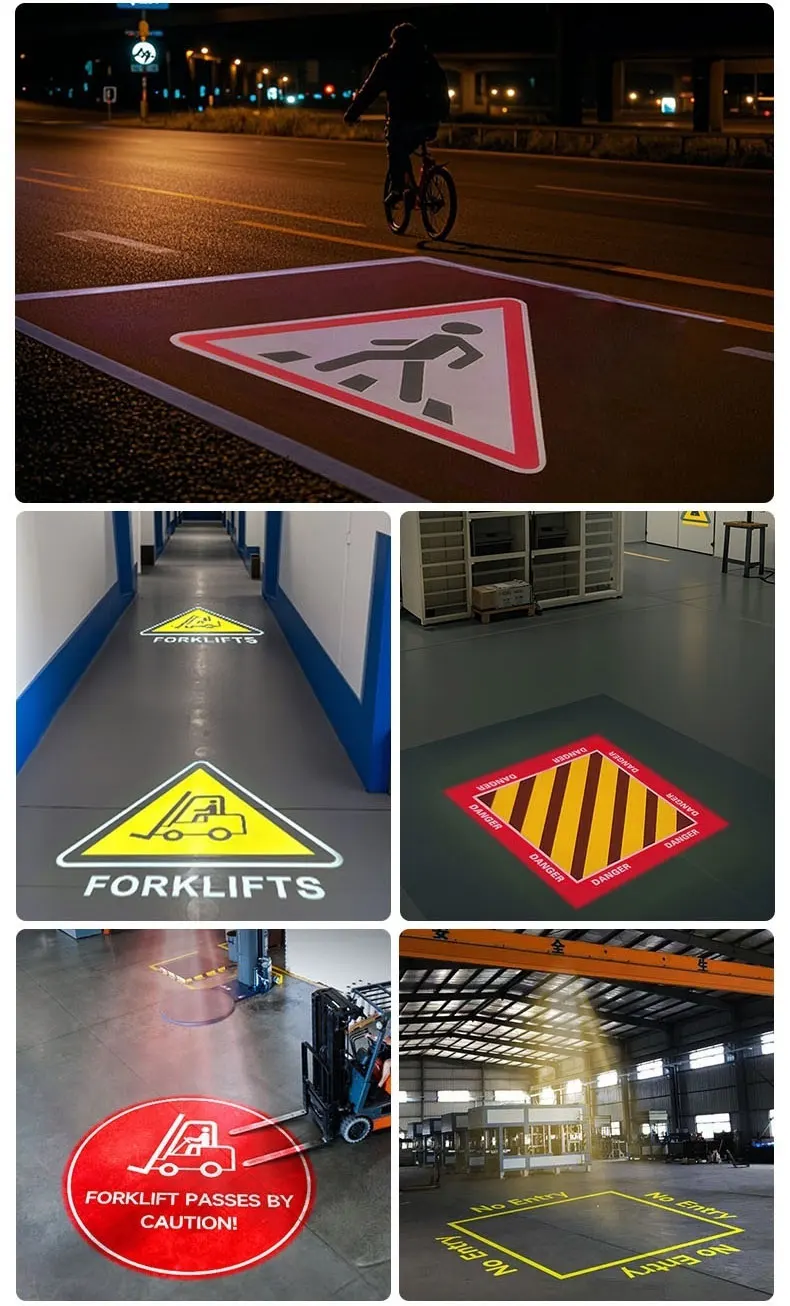

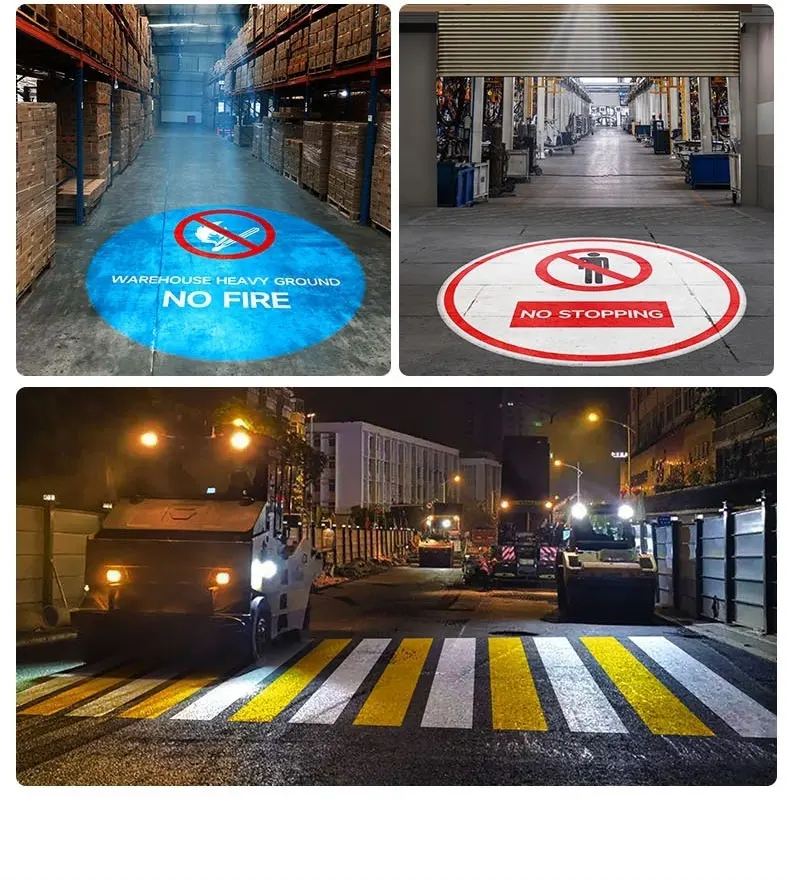

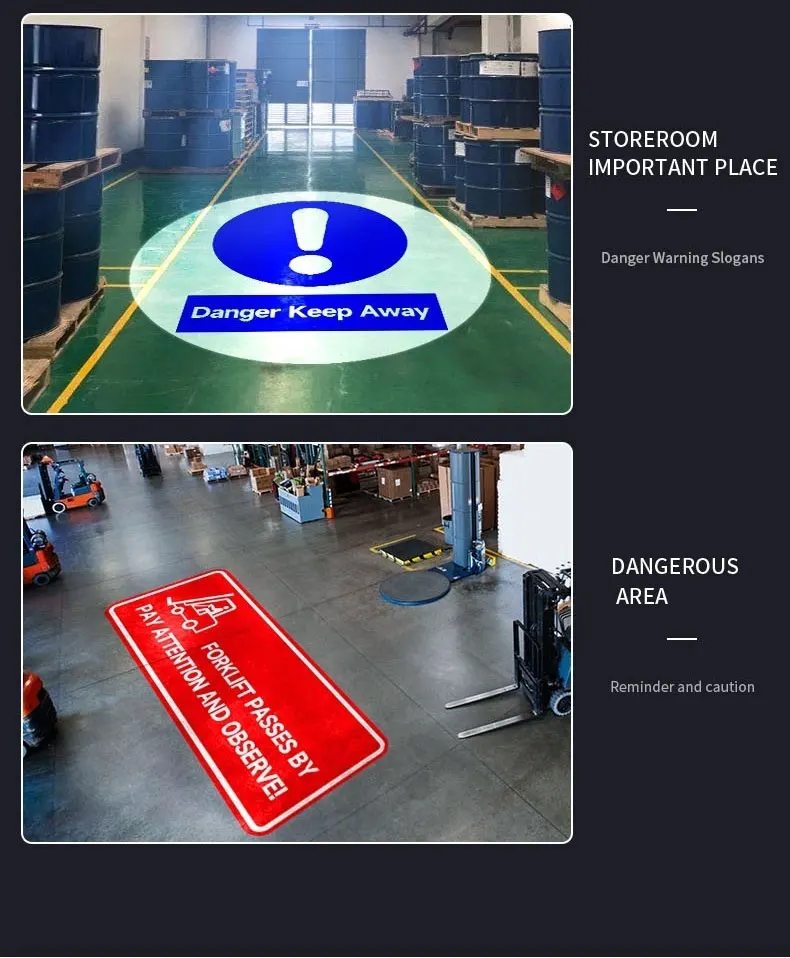

REPLACEABLE PATTERN & IP65 PROTECTION – Supports replaceable projection slides for safety warning signs, making it suitable for safety sign projection applications in crane zones and factory areas. With an IP65 outdoor rainproof rating and a working temperature range of -40°C to 60°C, it can adapt to a wide range of indoor and outdoor environments.

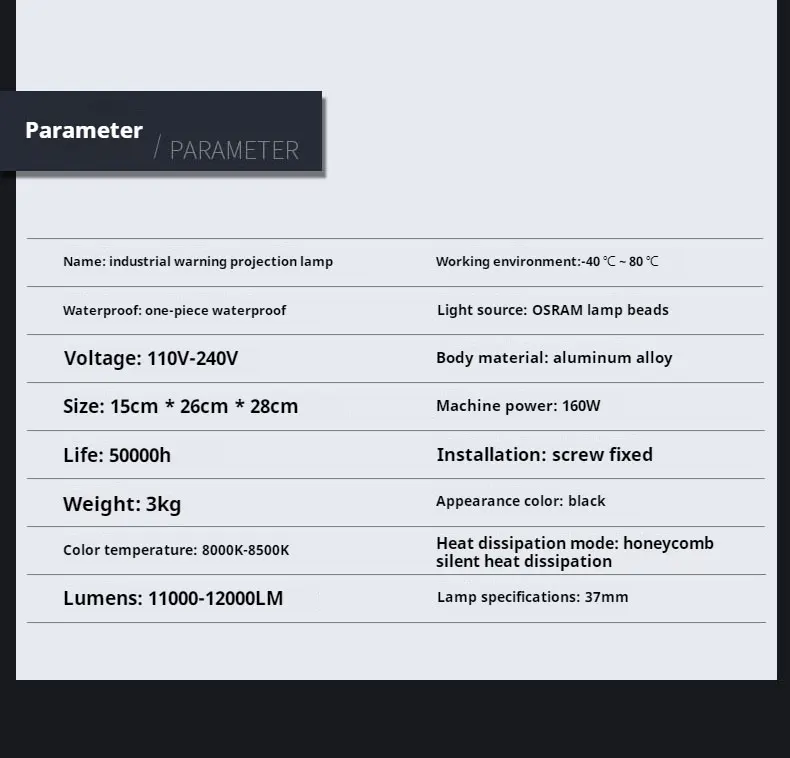

Related Parameters
Color Temperature: 8000–8500K
Color Rendering Index (CRI): 85Ra
Forward Voltage: 24–36V
Standard Lens: 0.3 (Default)
Operating Temperature: -40°C to 60°C
Ingress Protection Rating: IP65 (Outdoor Rainproof)
Optical Power: 15W / 25W / 35W
LED Chips: OSRAM LED Chips
Light Source Type: High-Power LED
Luminous Flux: 2000–2500 lm
Light Source Lifespan: ≥50,000 hours
Heat Dissipation: Aviation-Grade Cold-Forged Aluminum
Optional Lens Options (Beam Angles):0.2(11°)/0.3(17°)/0.33(25°)/0.65(36°)
Installation Method: Recessed Mounting
Power Supply: Constant Current Driver
Gobo Diameter: 54 mm
Recommended Projection Distance:1–6 m (25W)/1–9 m (35W)
Housing Material: Aluminum Alloy
Housing Color: Silver White
Fixture Weight:1.35 kg (25W)/1.45 kg (35W)
What is the recommended projection distance for the Recessed Logo Projector?

It depends on the power version. The recommended projection distance is approximately 1–4 m for 15W, 1–6 m for 25W, and 1–9 m for 35W. The final effect also depends on the brightness.

Can the projection size be adjusted?

Yes. The projector supports multiple optional lenses, including 11°, 17°, 25°, and 36°, allowing different projection sizes and coverage according to the installation distance.

Is the Recessed Logo Projector suitable for outdoor use?

Yes. It has an IP65 outdoor rainproof rating and supports an operating temperature range of -40°C to 60°C, making it suitable for a variety of indoor and outdoor installation environments.
