150W Guidance Sign Projector for Warehouse Safety

35–100W STOP Safety Sign Warning Projector for Warehouse Forklift & Crane Safety

This compact 35–100W safety sign projector projects a clear ground warning for indoor workshops, forklift passages, and industrial safety marking.

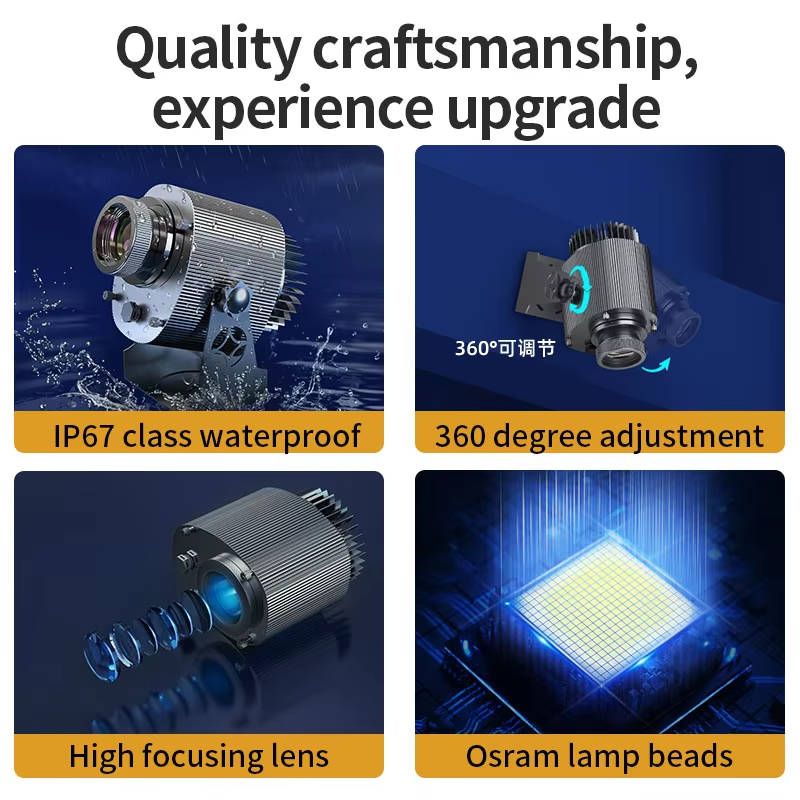

Optional
OSRAM LED Chips
360-Degree Adjustment
IP65 Waterproof
High focusing lens
Description
CLEAR STOP SAFETY SIGN PROJECTION – The STOP Safety Sign Warning Projector projects a clear STOP warning symbol onto floors, walls, entrances, intersections, warehouses, and industrial work areas, creating a highly visible safety reminder where traditional signs may be less noticeable.
MULTIPLE POWER OPTIONS FOR DIFFERENT DISTANCES – Available in 35W, 50W, 80W, and 100W configurations to suit different installation heights and projection distances. Depending on power and lens selection, the projection distance is 1–26 m (100W).
OSRAM LED & LONG SERVICE LIFE – Built with a high-power OSRAM LED light source and designed for a service life of 30,000 hours or more, providing stable illumination for long-term industrial warning and safety-sign projection.
IP65 FOR INDOOR & OUTDOOR USE – The projector features an IP65 waterproof rating and an operating temperature range of -40°C to 60°C, making it suitable for factories, warehouses, loading areas, parking facilities, outdoor entrances, and other demanding environments.
FLEXIBLE ANGLE & LENS CONFIGURATION – A 0–180° adjustable mounting bracket lets you aim the warning image at the required location. Optional 11°, 17°, 36°, and 53° lenses allow users to adjust projection size and coverage for different installation conditions.
Related Parameters
Color Temperature: 8000–8500K
CRI: 85Ra
Light Source: High-Power LED
Standard Lens: 0.33 (Default)
Operating Temperature: -40°C to 60°C
Ingress Protection Rating: IP65
Optical Power: 35W / 50W / 80W / 100W
Power Supply: Constant Current Driver
LED Chips: OSRAM LED Chips
Luminous Flux: 9500–10000 lm (100W)
LED Lifespan: ≥30,000 hours
Heat Dissipation: Aviation-Grade Cold-Forged Aluminum Heat Sink
Optional Lens Options (Beam Angles):0.2(11°)/0.33(17°)/0.65(36°)/1(53°)
Bracket Adjustment: 0–180°
Gobo Diameter: 37 mm
Recommended Projection Distance: 1–26 m (100W)
Housing Color: Silver White / Black
Fixture Weight: 1.6 kg
What is the recommended projection distance for the STOP Safety Sign Warning Projector?

It depends on the power and lens selected. The projector is available in 35W, 50W, 80W, and 100W versions, with a recommended projection distance of 1–26 m (100W) under suitable conditions.

Can the STOP Safety Sign Warning Projector be used outdoors?

Yes. The projector has an IP65 waterproof rating and supports an operating temperature range of -40°C to 60°C, making it suitable for indoor and outdoor industrial applications.

Can the projection size and angle be adjusted?

Yes. The mounting bracket supports 0–180° angle adjustment, and optional 11°, 17°, 36°, and 53° lenses are available for different projection sizes and distances.
