Rotating Crane Warning Projector for Factory Safety Areas

Carousel-pattern warning projector for overhead travelling cranes, factory traffic zones and rotating safety indication.
Rotation and Control Options
  • Pattern: four-image switching for changing crane or traffic warnings
  • Motion: rotating projection, 3-5 rpm pattern speed
  • Control: limit switch trigger for equipment movement zones
  • Power range: 120W / 135W / 150W / 160W / 200W options
  • Housing: IP65 waterproof, heat-resistant industrial design
  • Projection distance: 1-36 m for the 160W configuration; 200W distance to be confirmed
Description
Rotating Safety Warning Projection:The Crane Warning Projector supports rotating projection at 3–5 rpm, making warning signs more noticeable in crane travel areas and factory safety zones. Industrial Safety Lights
Four-Image Switching Function:It can switch between four different warning patterns, helping one installation point display different crane, traffic, or equipment movement warnings. Industrial Safety Lights

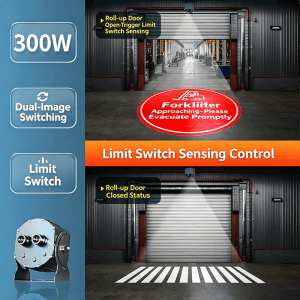

Limit Switch Control:The projector can work with a limit switch, allowing the warning pattern to respond to crane or equipment movement for more practical industrial safety use. Industrial Safety Lights

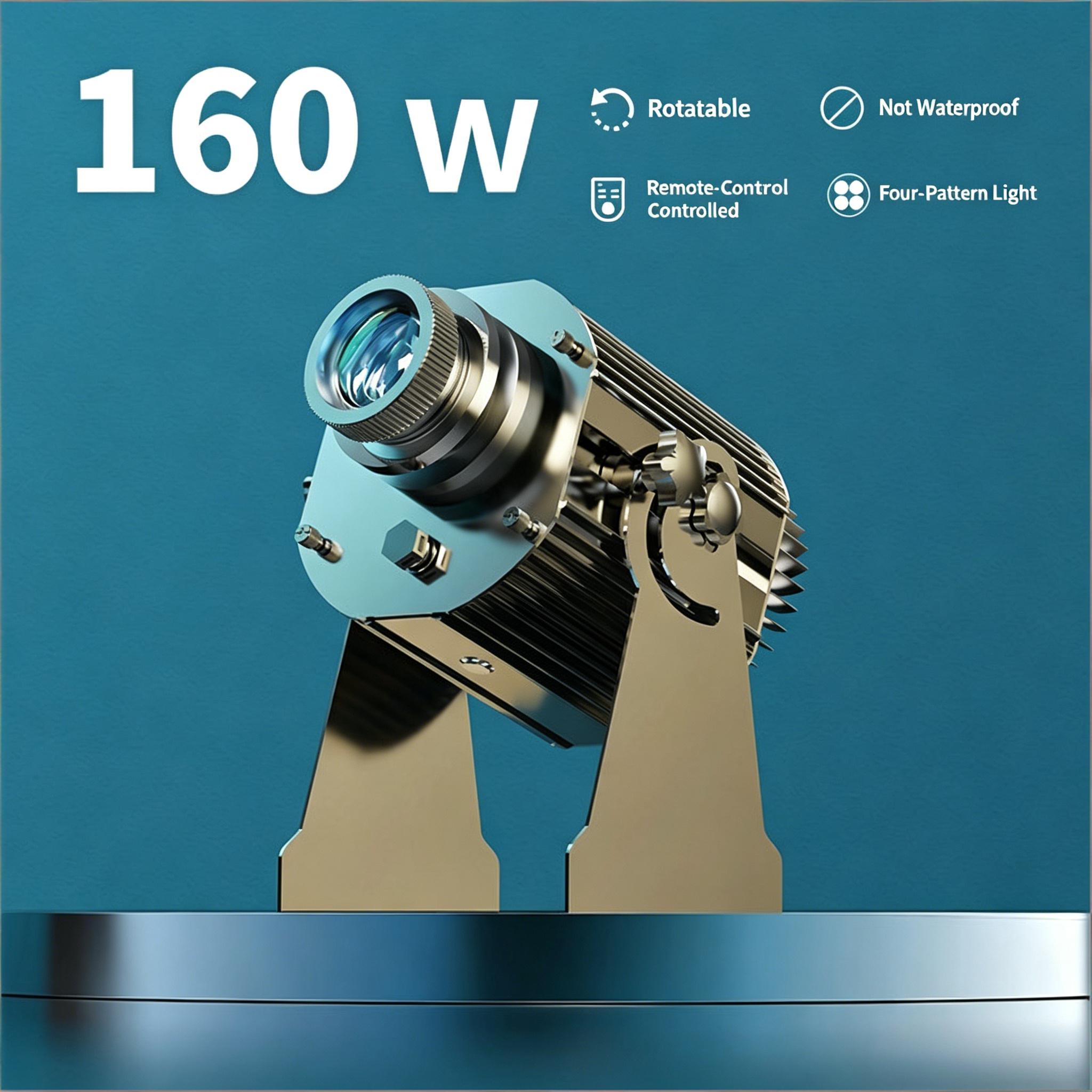

Long Projection Distance & Multiple Power Options:Available in 120W, 135W, 150W, 160W, and 200W. The 160W version supports a recommended projection distance of 1–36 m, depending on lens choice, mounting height, and ambient light. Industrial Safety Lights

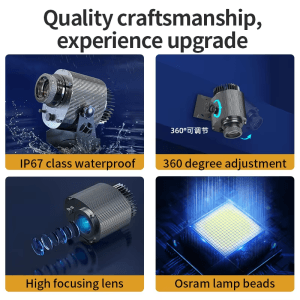

Industrial IP65 Design:The Crane Warning Projector uses an IP65 waterproof, heat-resistant housing and is designed for overhead crane paths, factory intersections, equipment movement zones, and other industrial warning areas.
Key Specifications

Color Temperature (CCT):8000–8500 K
Color Rendering Index (CRI):Ra ≥ 85
Light Source:High-Power LED
Standard Lens:0.33 (Default)
Operating Temperature:-40°C to +60°C
Ingress Protection:IP65
Power Consumption:120W / 135W / 150W / 160W / 200W
LED Type:High-Power LED Chips
Luminous Flux:11,000–12,000 lm (160W); 200W to be confirmed
LED Lifetime:30,000 hours
Optional Lenses (Beam Angles) 0.2 (11°) / 0.33 (17°)
Rated Voltage:AC 100–240 V
Gobo Size:37 mm, High-Temperature Resistant
Recommended Projection Distance:1–36 m (160W); 200W to be confirmed
Gobo Rotation Speed:3–5 rpm
Net Weight:5 kg (160W); 200W to be confirmed

How is this rotating crane warning projector different from a sensor switching forklift projector?

This model focuses on rotating or carousel pattern warning for crane and factory area indication. It uses four-image switching and limit switch control, while the forklift passage model focuses on sensor-triggered passage warnings.

What does four-image switching mean?

Four-image switching means the projector can cycle between multiple warning patterns, which is useful when one location needs different crane, traffic or area indication messages.

Where should this product be used?

It is suited for overhead travelling crane paths, factory area indication, equipment movement zones and industrial safety areas that need a rotating warning pattern.
