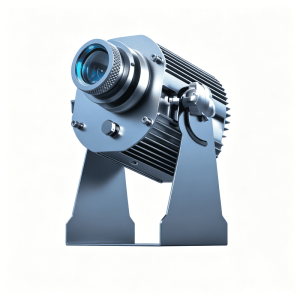

Sensor Switching Warning Projector for Forklift Passage Safety

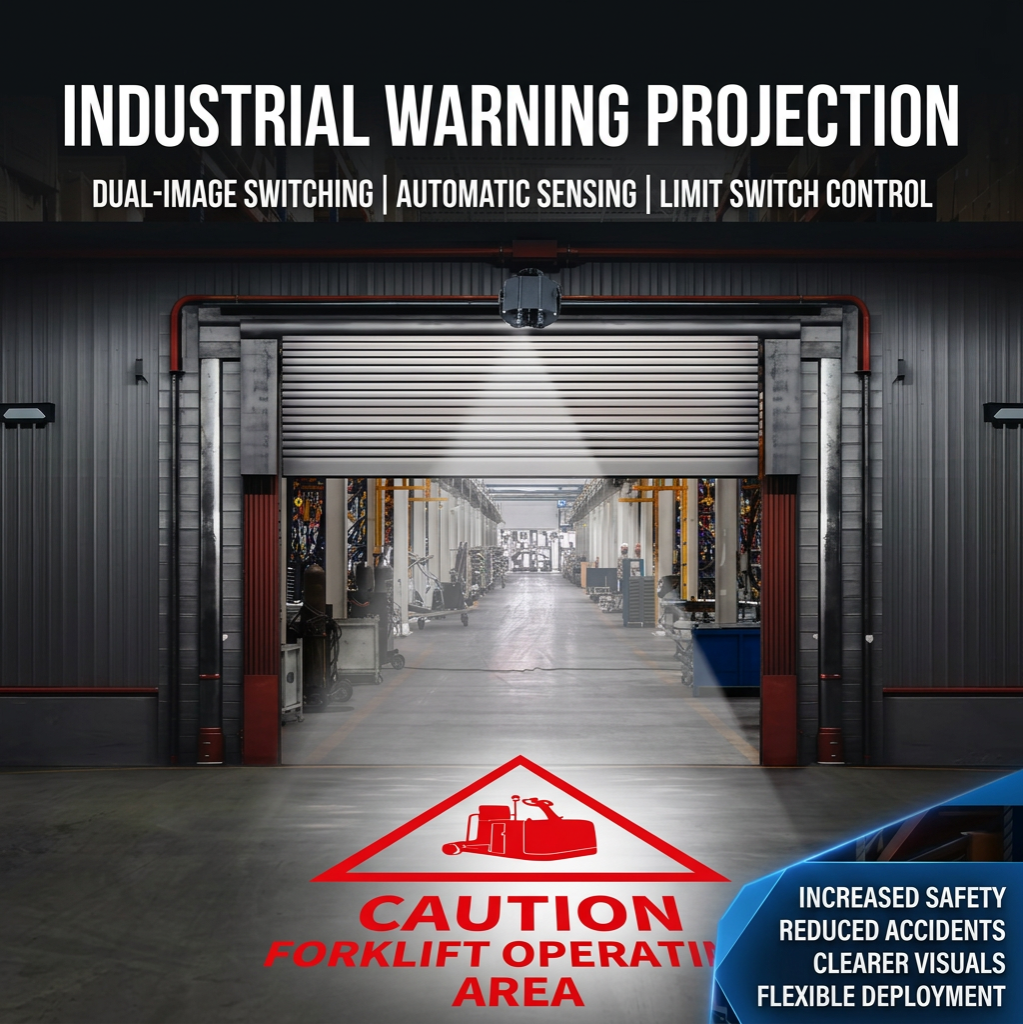

- Switching: dual-image warning projection for changing traffic states
- Sensing: limit switch, camera motion detection or PIR infrared sensor
- Alarm: buzzer alert for forklift passages and blind crossings
- Power range: 160W / 200W / 300W LED options
- Outdoor rating: IP65 housing for rain-protected industrial use
- Projection distance: 1-35 m for 300W configuration
| Power options | 160W / 200W / 300W high-power LED |
|---|---|
| Sensor modes | Limit switch, camera motion detection, PIR infrared sensor |
| Projection behavior | Dual-image switching for warning mark changes |
| Alarm function | Buzzer alarm available for passage warning |
| Color temperature | 8000-8500K |
| CRI | 85Ra |
| Forward voltage | 24-36V |
| Waterproof rating | IP65, suitable for outdoor rain protection |

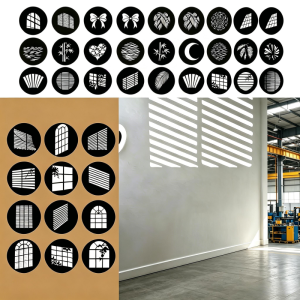

| Projection lens | Gobo lens options: 0.2 / 0.33 / 0.5 / 0.65 |
| 300W output | 27,500-29,500 lm, optimal projection distance 1-35 m, net weight 8.3 kg |
Automatic Warning for Forklift Passage and Blind Corners

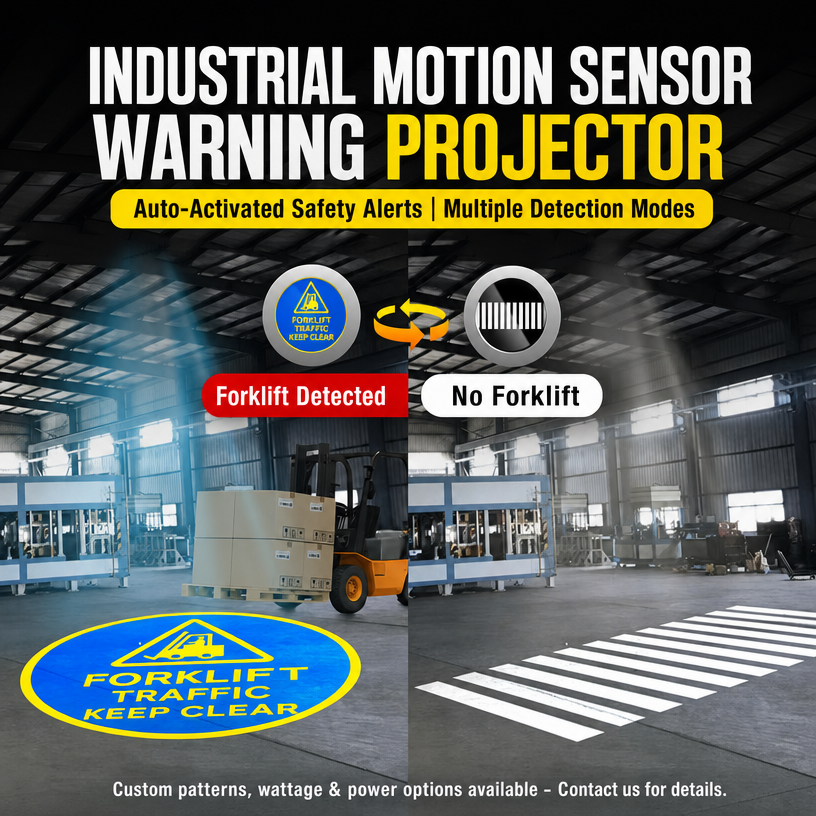

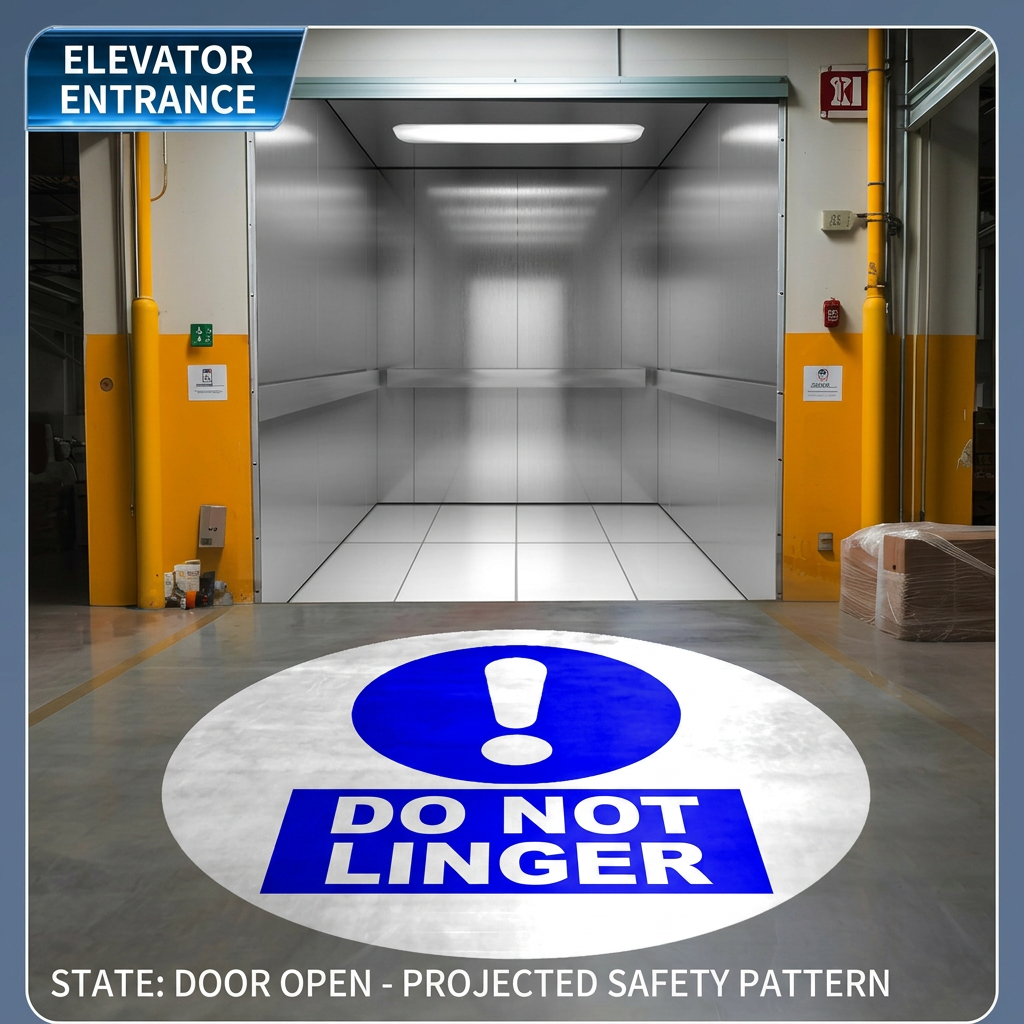

This sensor switching warning projector is designed for industrial traffic areas where a static sign is not enough. When a forklift, crane or vehicle enters the monitored zone, the projector can switch the ground image and help workers notice the changing traffic state before they step into the passage.

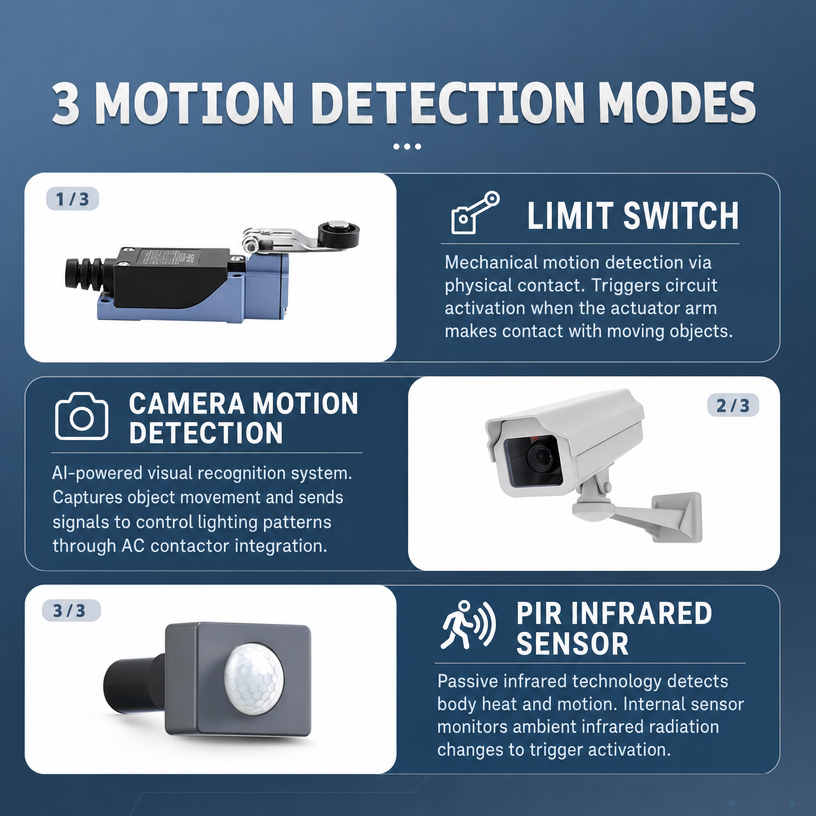

Sensor Mode Selection
| Mode | Best use | Buyer note |
|---|---|---|

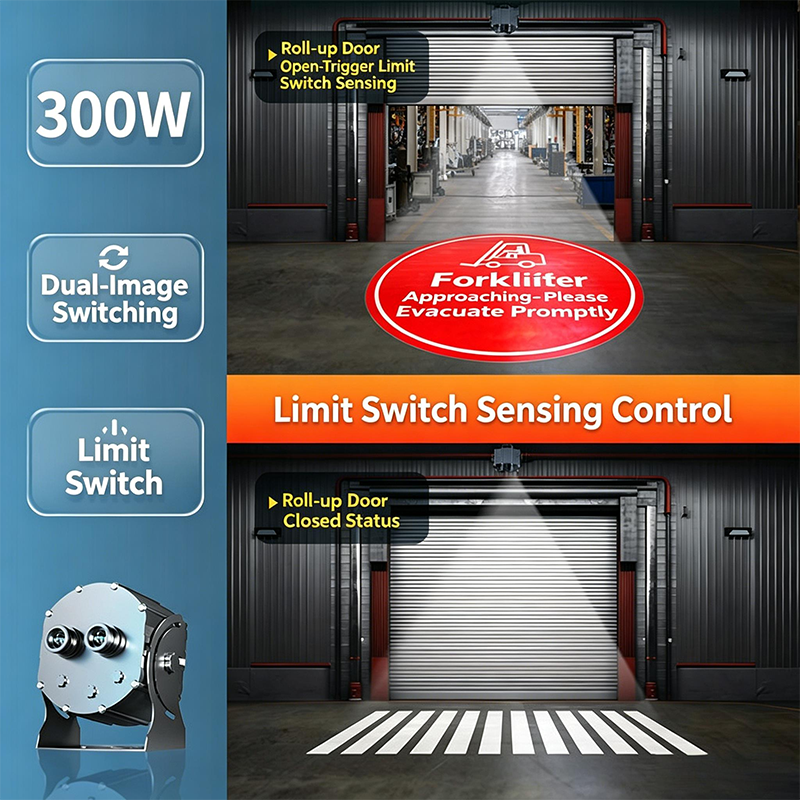

| Limit switch | Fixed equipment movement, doors or crane travel paths | Best when the trigger point is predictable and mechanical |

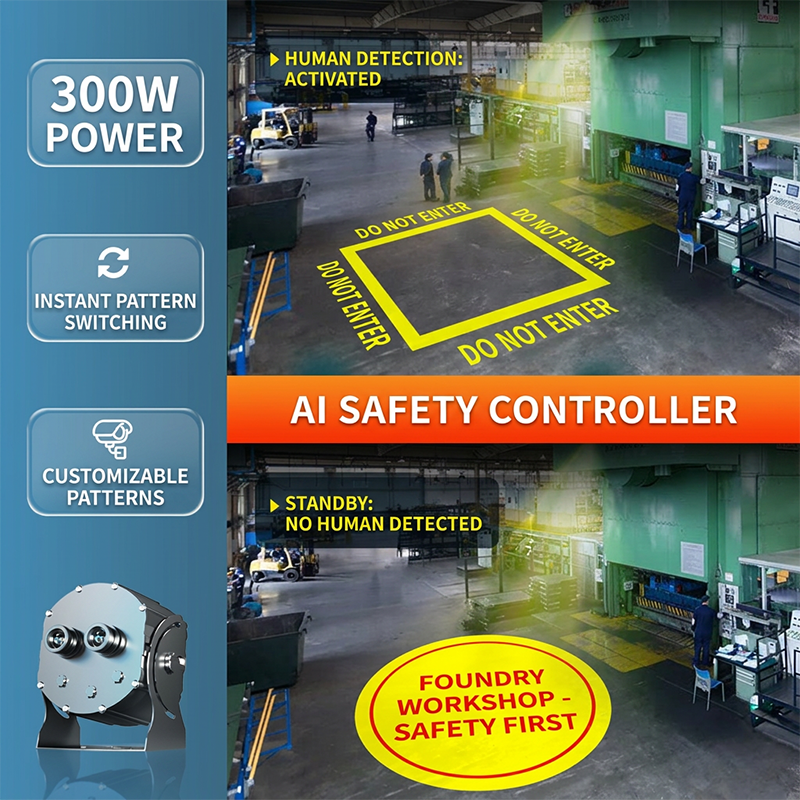

| Camera motion detection | Forklift crossings and wider traffic areas | Useful when object movement needs wider-area detection |

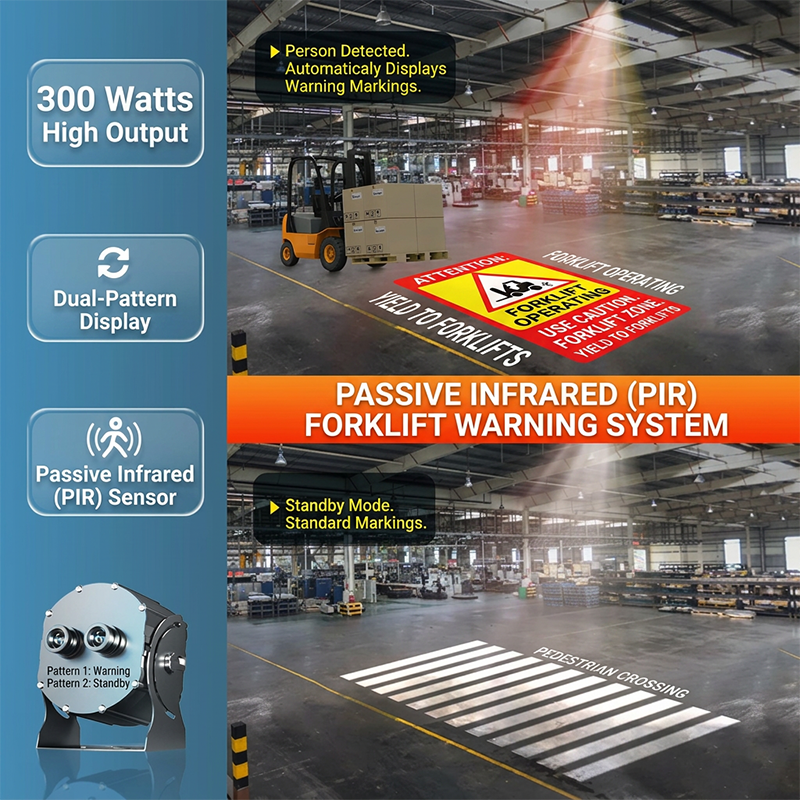

| PIR infrared sensor | Human or vehicle movement near blind corners | Confirm mounting height and detection direction before ordering |
Application Scenarios

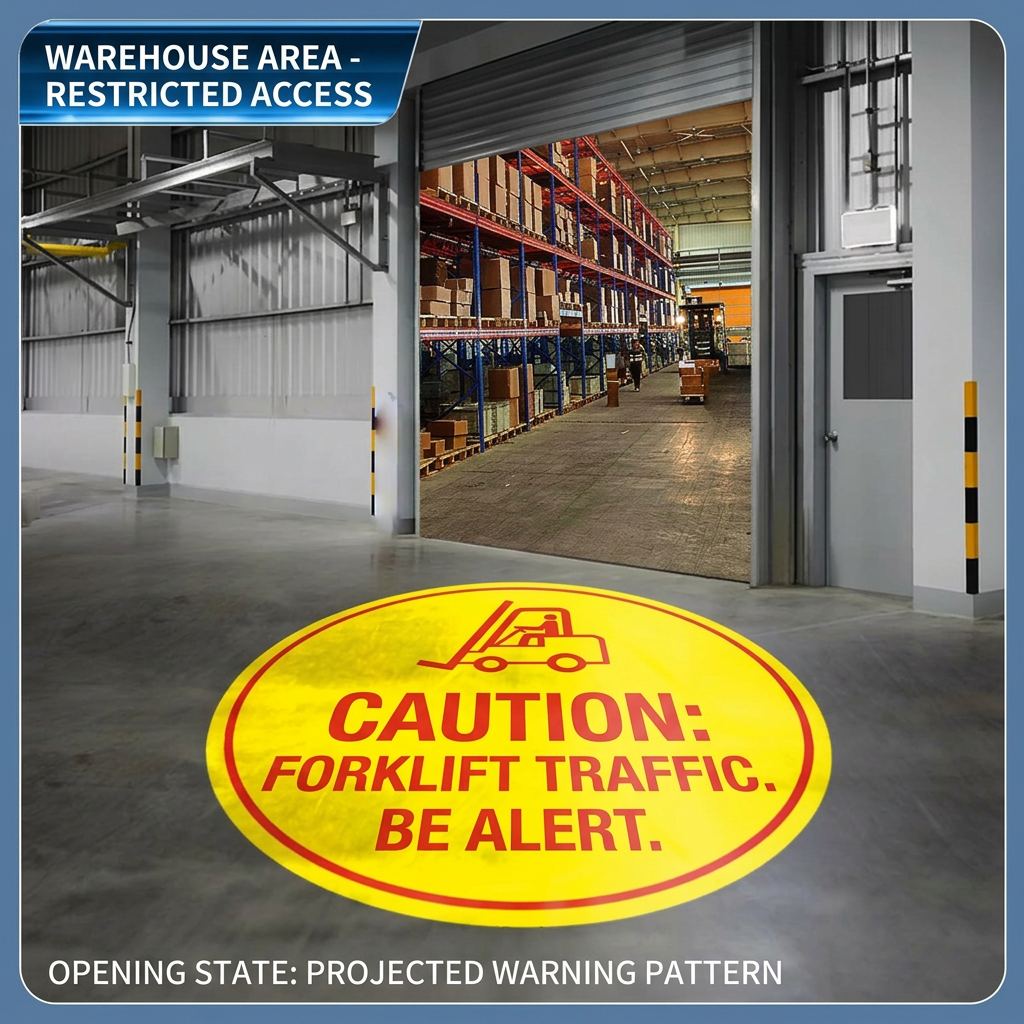

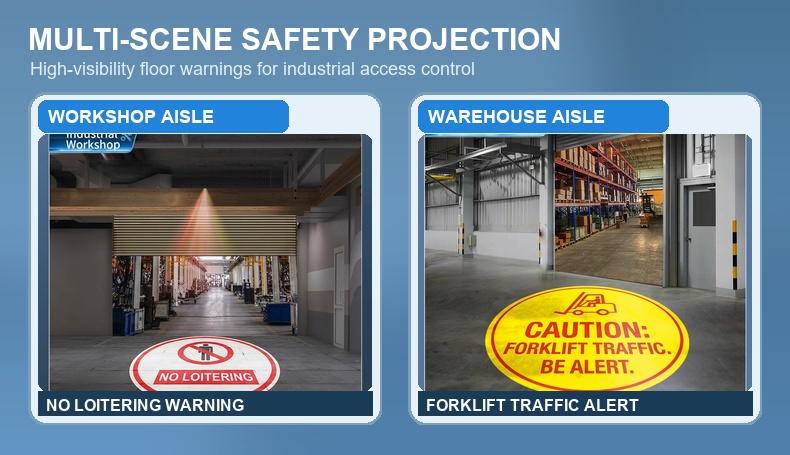

- Forklift passage warning where people and vehicles share the same aisle.

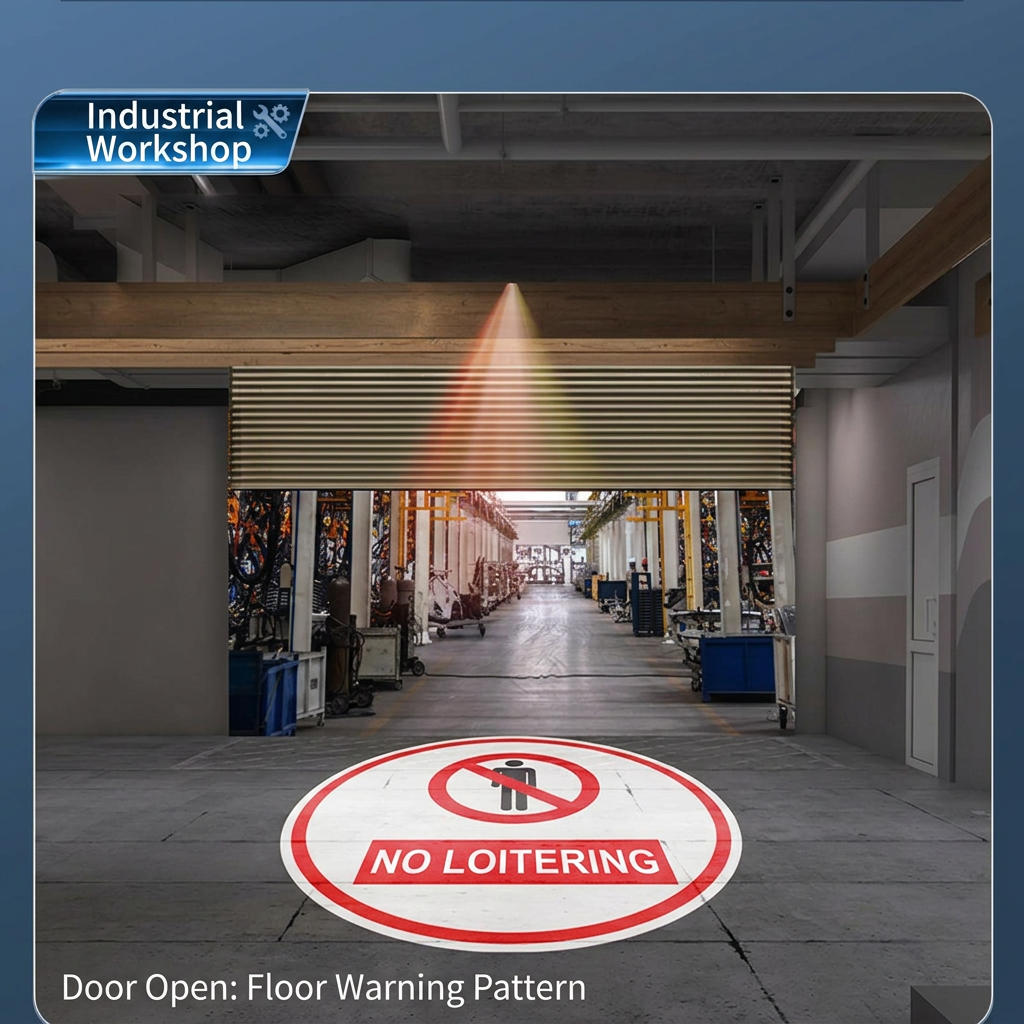

- Workshop blind-corner safety marks that need sensor-triggered switching.

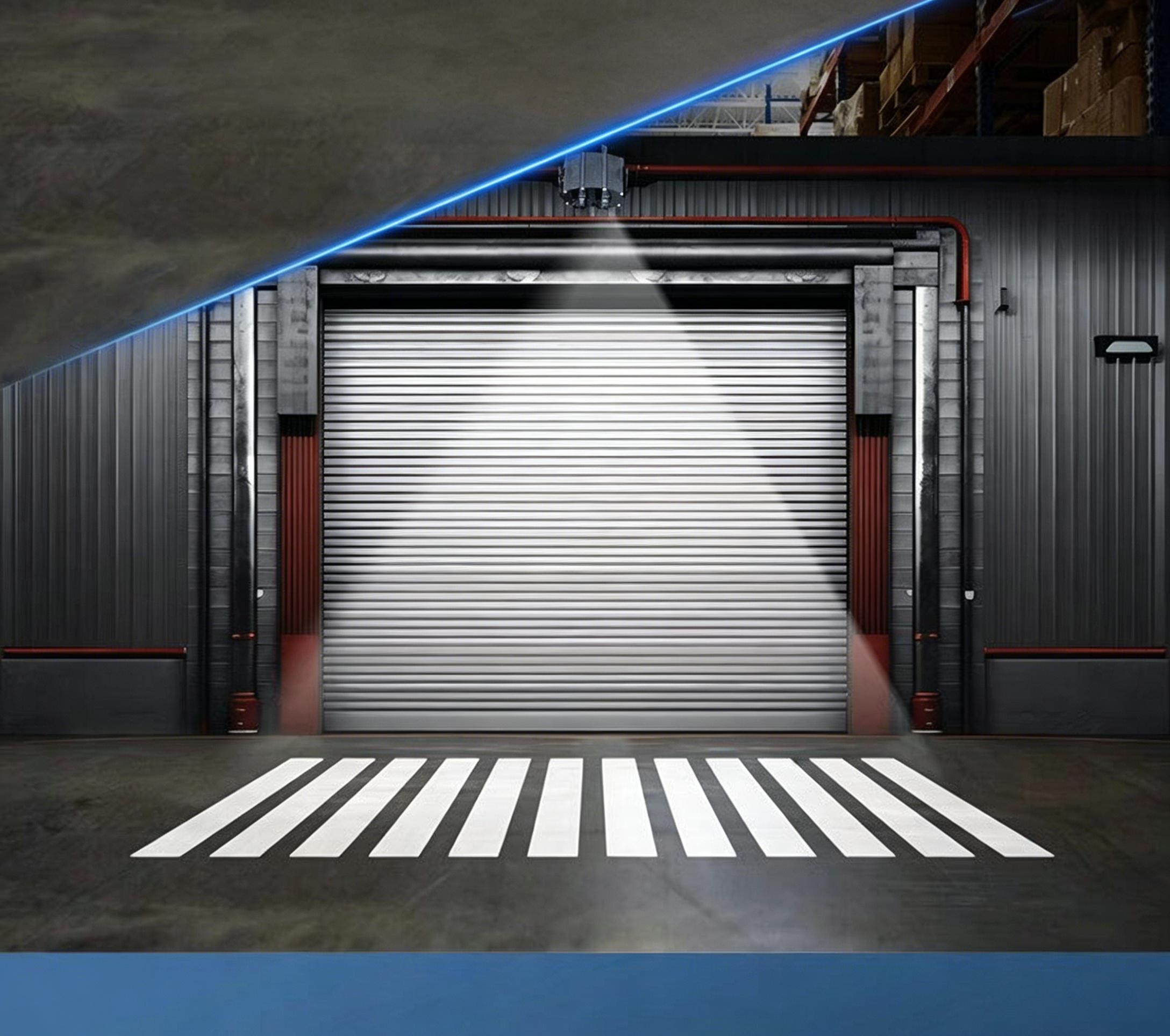

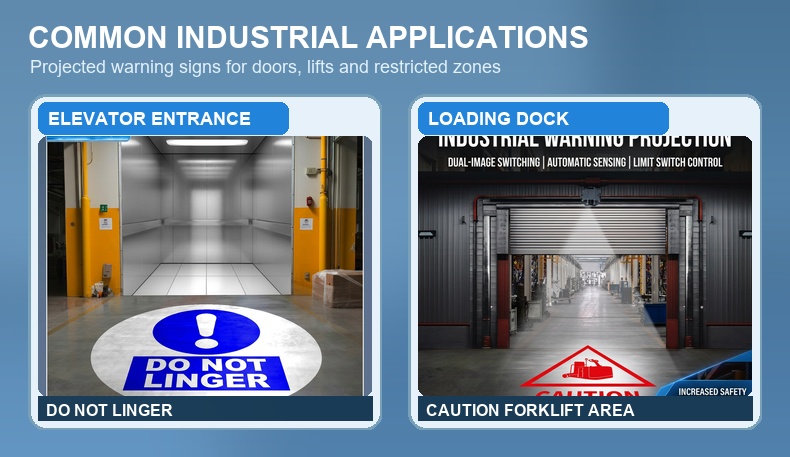

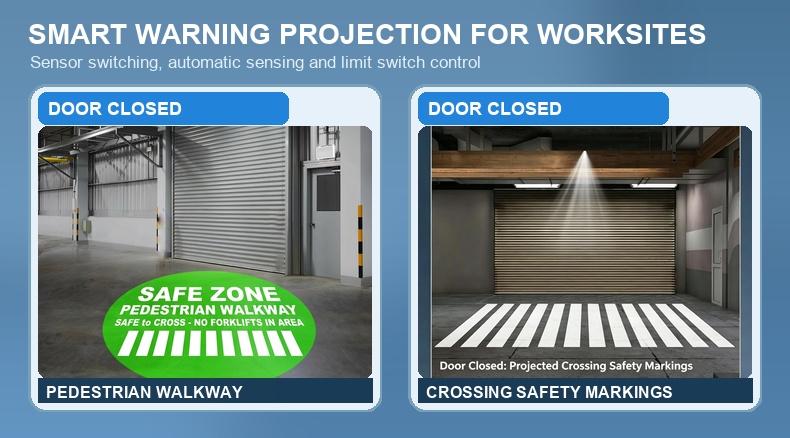

- Factory entrances, loading docks and warehouse intersections with changing traffic conditions.
- Crane travel or equipment movement zones that need both visual and audible warning.
Buyer FAQ
What does sensor switching mean on this warning projector?
Sensor switching means the projector can change the displayed warning image when a trigger is detected, such as a limit switch signal, PIR infrared movement or camera motion detection.
When should I choose the 300W version?
Choose the 300W version for longer projection distance, larger ground marks or brighter workshop and outdoor passage applications. The listed 300W configuration supports an optimal projection distance of 1-35 m.

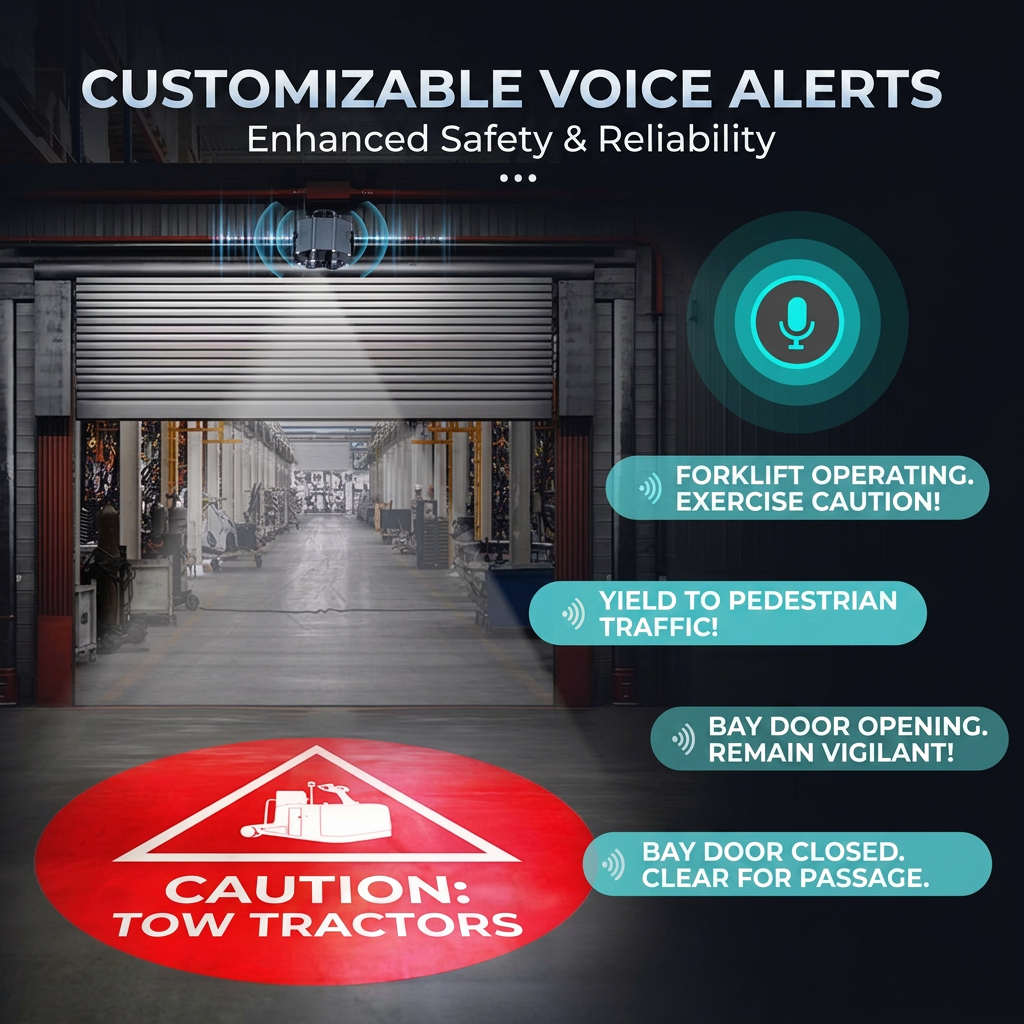

Can it warn both visually and audibly?
Yes. This product page lists an industrial warning projector with buzzer alarm, so it can combine a projected floor mark with an audible alert for forklift passage safety.
Which sites usually use this product?
It is suited for forklift passages, workshop crossings, warehouse entrances, crane travel areas and other blind zones where people need a clear warning before equipment enters.
