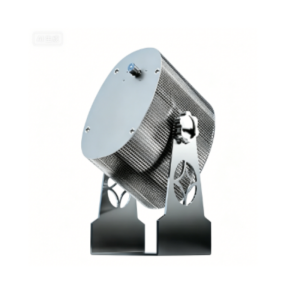

300W/500W Automatic Sensor Projector for Warehouse Gate and Factory Entrance
- Coverage: double-head projection for two-way traffic or wider intersections
- Use: forklift lanes, cross aisles, loading areas and outdoor factory paths
- Power class: 160W / 200W / 300W options
- Light source: Osram LED chips with high-power LED output
- Outdoor rating: IP65 rainproof housing
- Projection distance: 1-35 m for 300W configuration
THREE SENSOR OPTIONS – Choose a limit switch, camera motion detection or PIR infrared sensor according to the site. When a forklift, vehicle or pedestrian enters the detection area, the system automatically changes the projected warning pattern.
MULTIPLE POWER AND DISTANCE OPTIONS – Available in 160W, 200W and 300W versions. The recommended projection distances are approximately 1–25 meters for 160W, 1–30 meters for 200W and 1–35 meters for 300W, depending on the lens and site conditions.

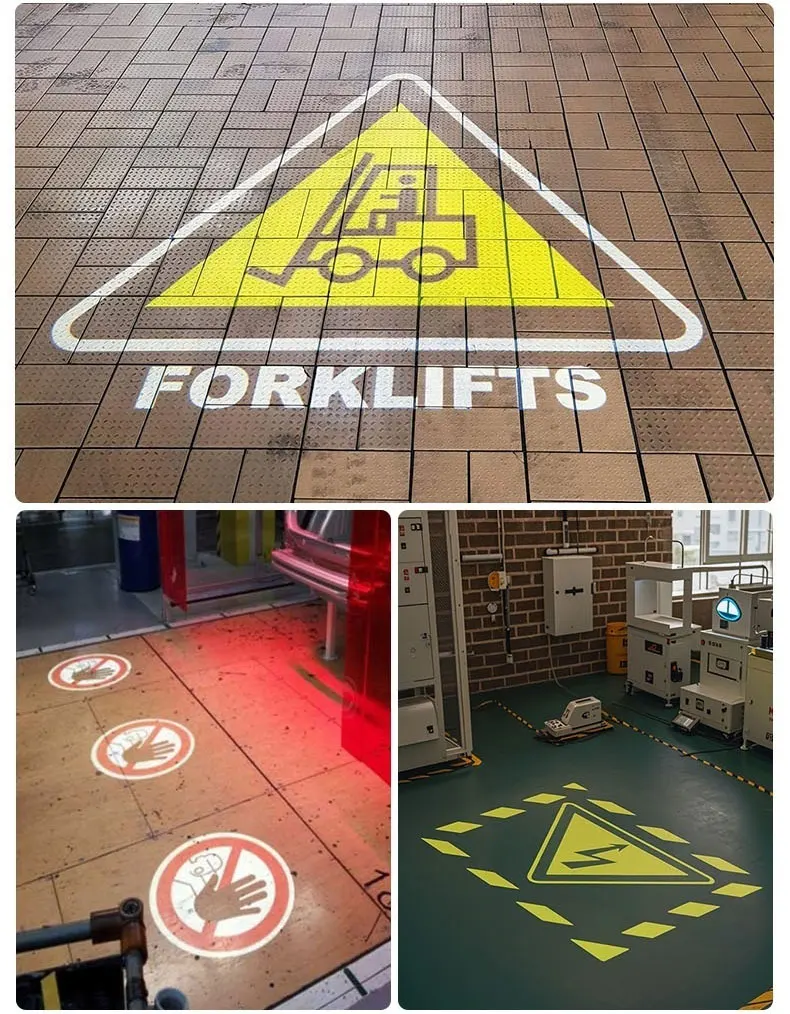

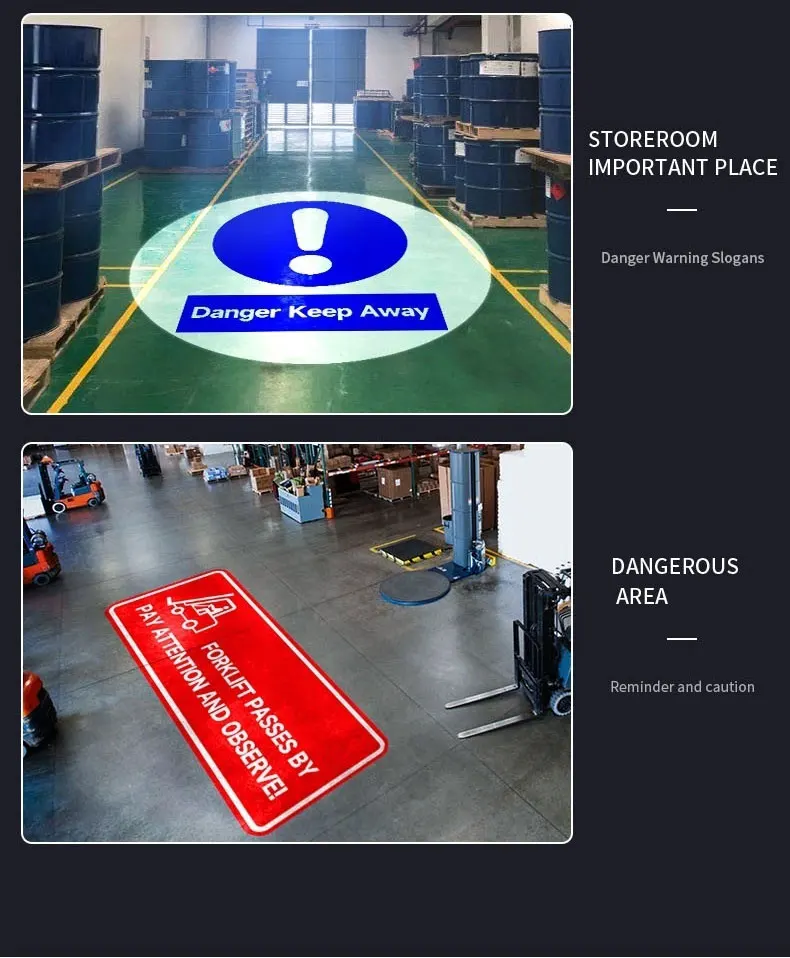

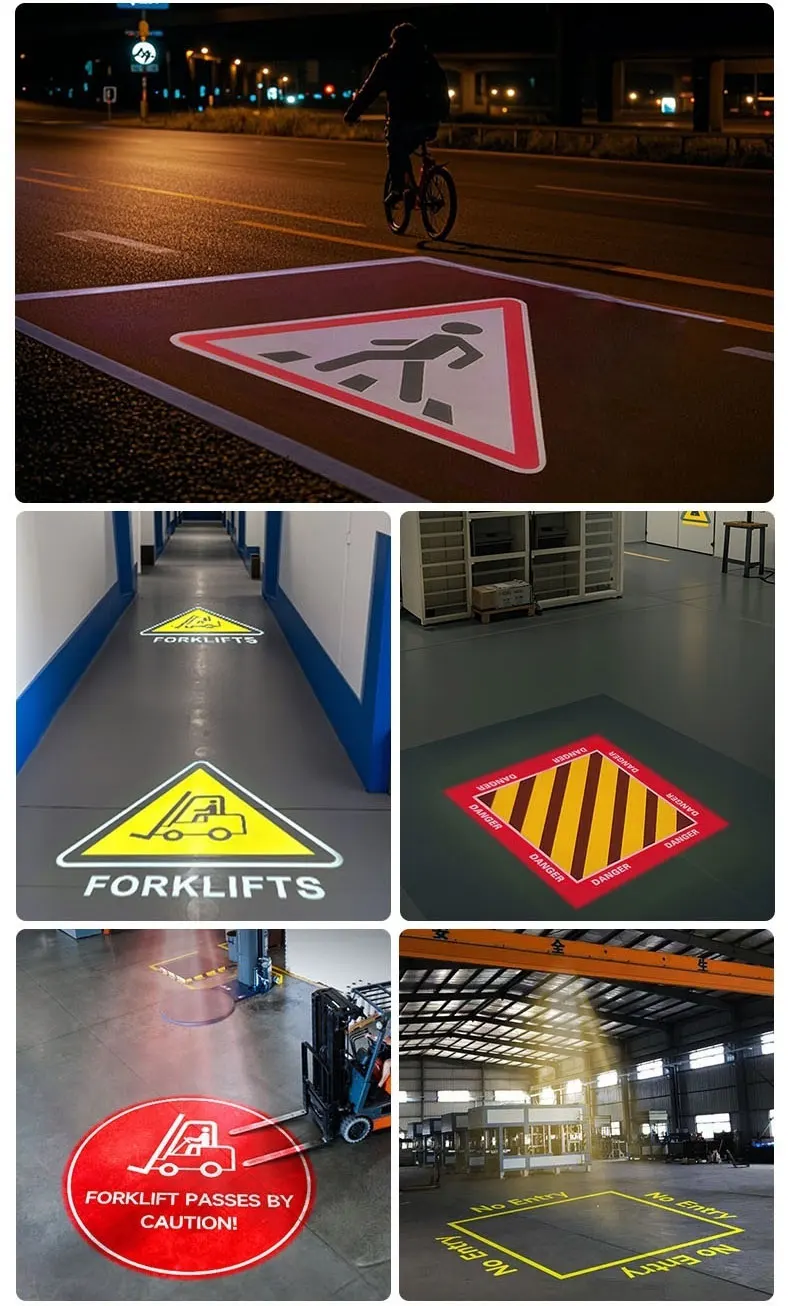

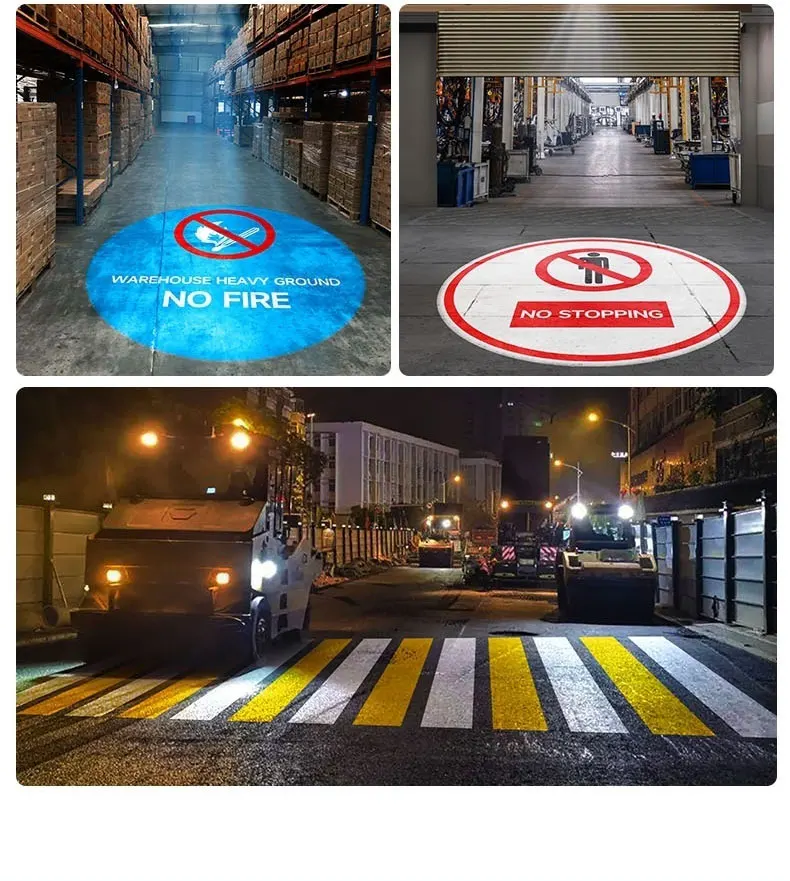

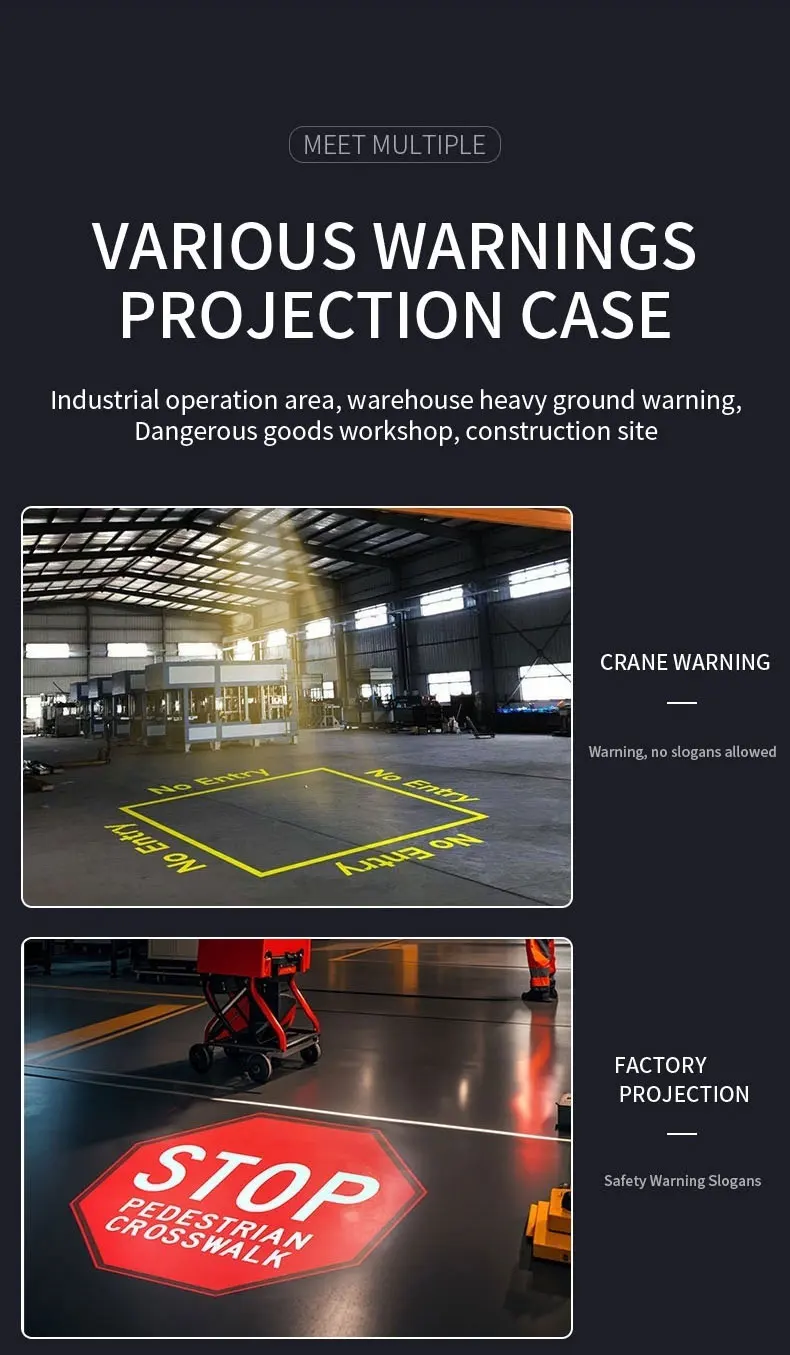

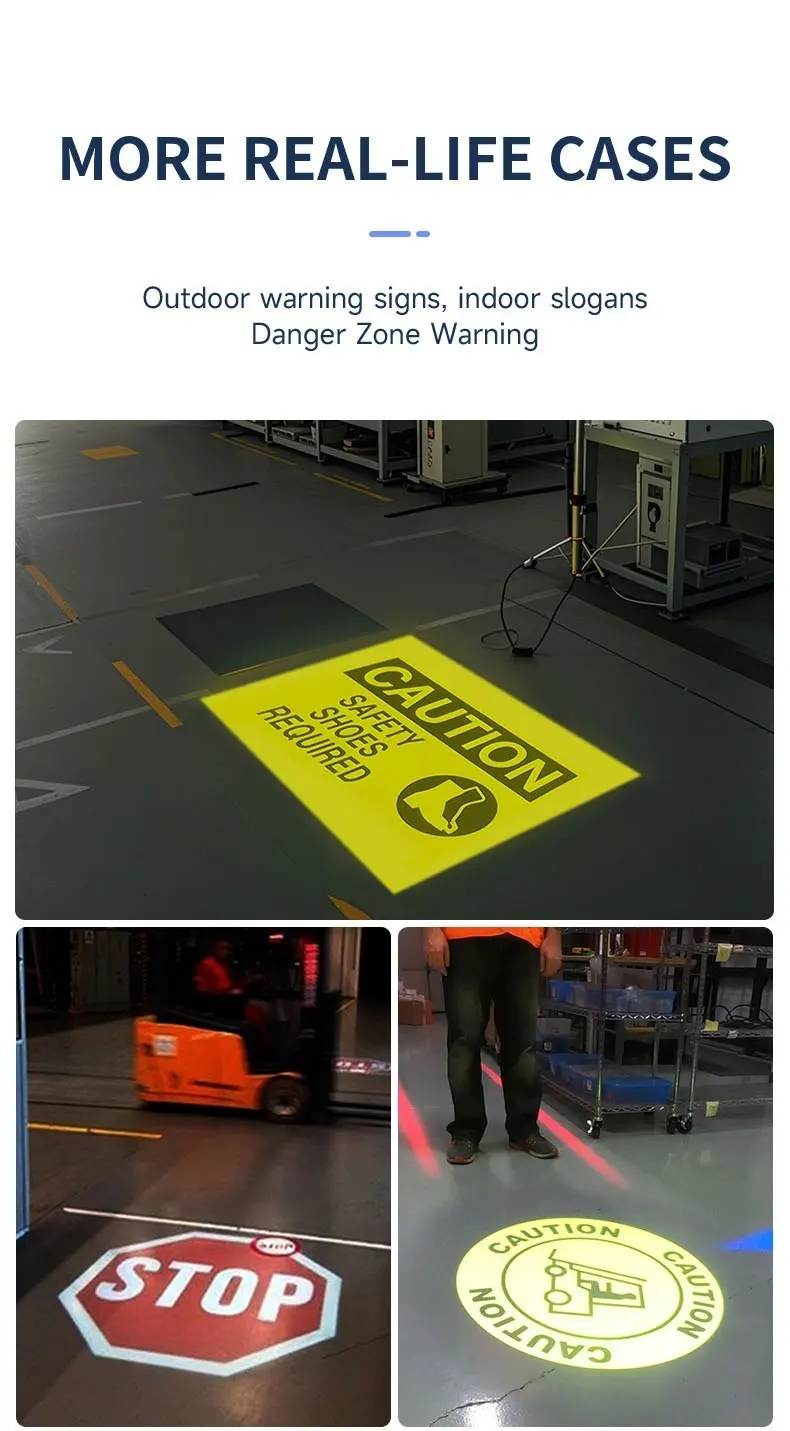

CUSTOM PATTERNS AND AUDIBLE WARNING – The Automatic Sensor Projector can display forklift warnings, pedestrian crossings, STOP signs, no-entry symbols or customized graphics. An optional buzzer provides an additional audible warning at busy passages and blind intersections.

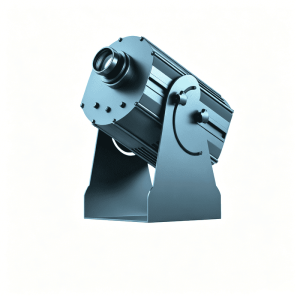

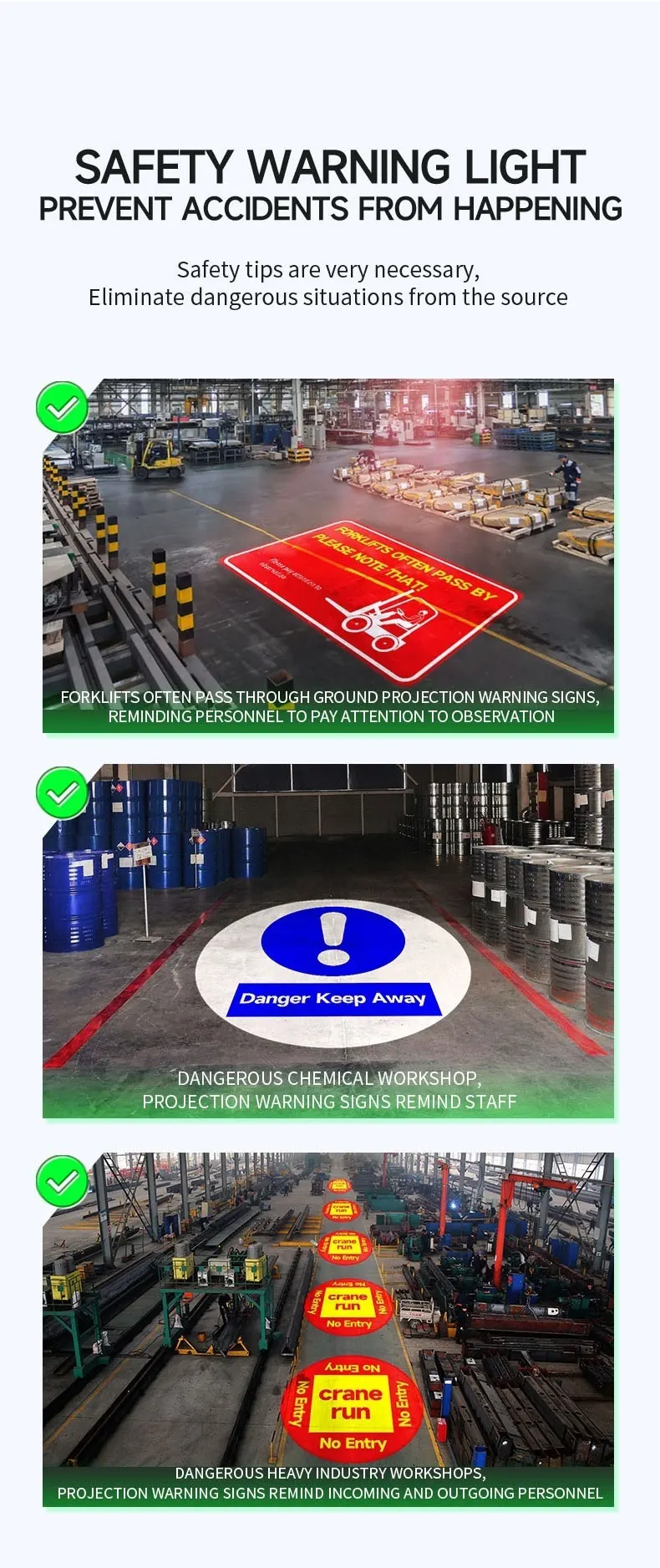

DESIGNED FOR INDUSTRIAL TRAFFIC AREAS – The IP65 aluminum housing supports installation in warehouses, production lines, loading areas, storage zones and factory intersections. It can be ceiling-mounted or installed on a supporting surface for different site layouts.














| Head configuration | Double-head projection for two-way or wider coverage |
|---|---|
| Power options | 160W / 200W / 300W |
| 300W output | 27,500-29,500 lm, 8.3 kg net weight |
| Projection distance | 1-35 m for 300W configuration |
| Lens options | 0.2 / 0.33 / 0.5 / 0.65 compatible GOBO lenses |
| Voltage | 24-36V forward voltage |
| Protection | IP65 outdoor rainproof, -40C to +60C operating temperature |

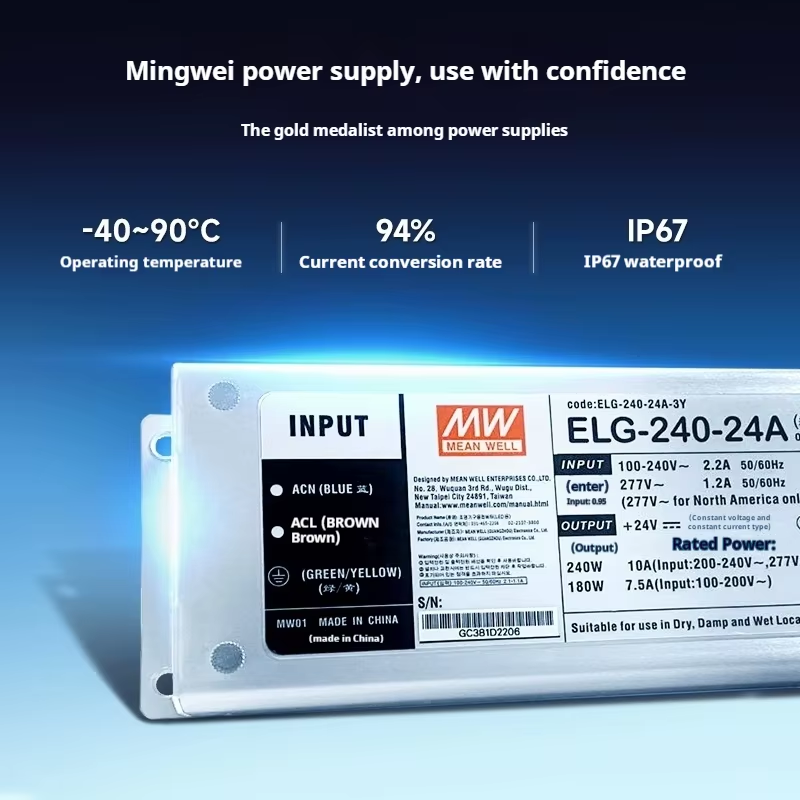

| Driver | Constant-current driver |
Two-Way Projection for Warehouse Intersections

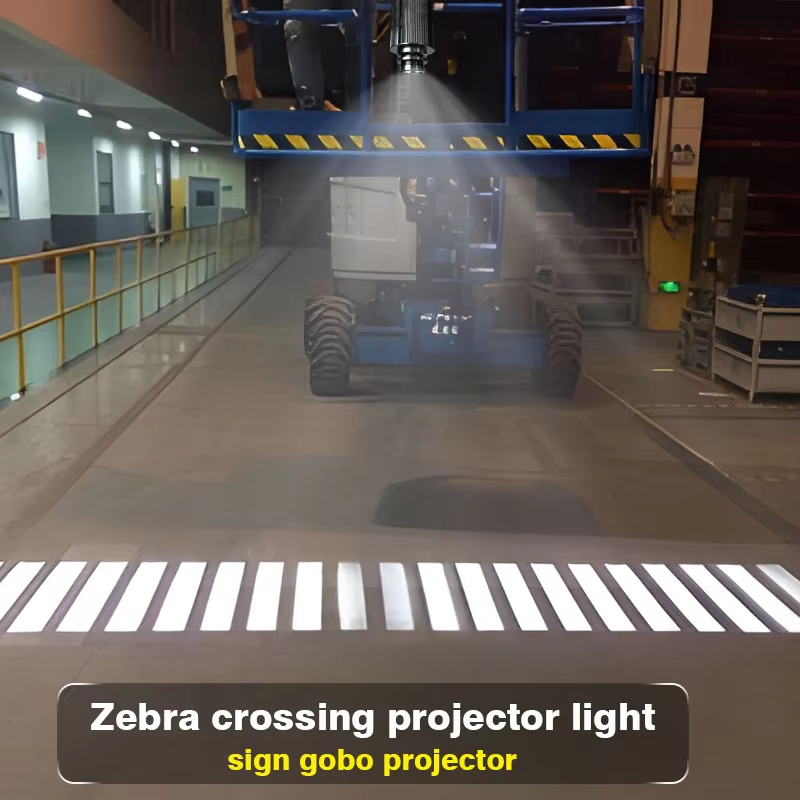

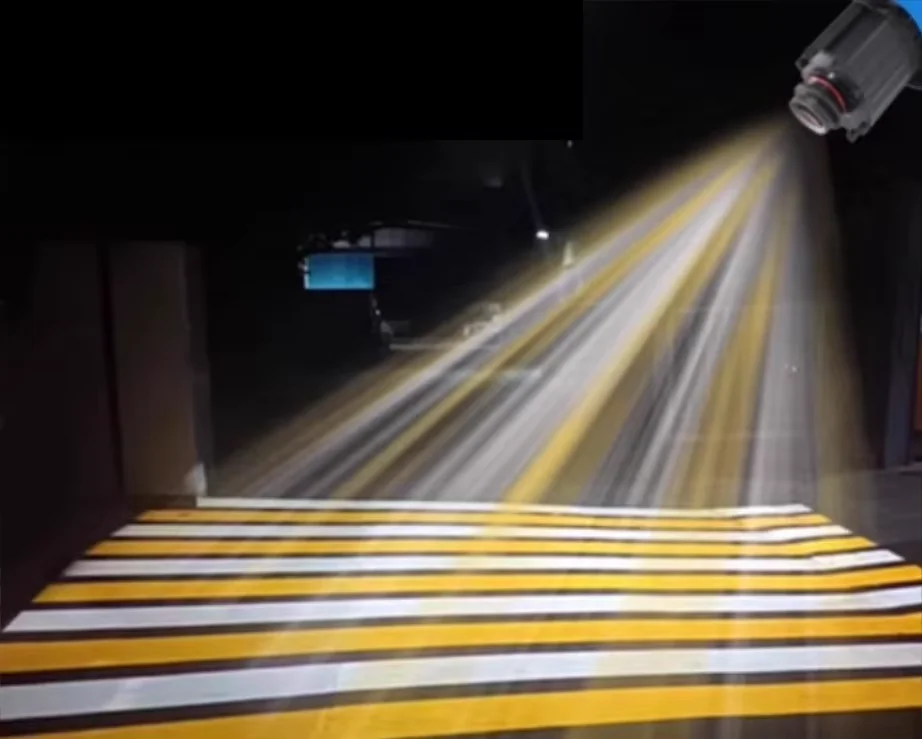

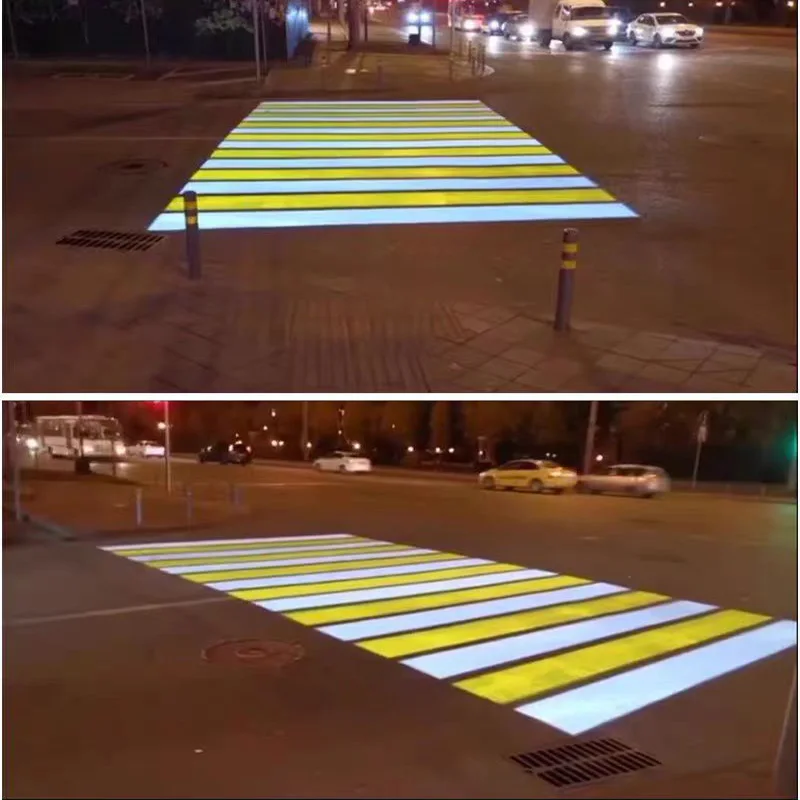

This double-head zebra crossing projector is designed for traffic layouts where one projected mark cannot cover the full safety zone. It can support two-way forklift lanes, cross aisles, loading areas and wider industrial paths that need visible warning from more than one direction.
Selection Notes
- Use the double-head model for intersections or two-direction traffic instead of buying two separate fixtures blindly.
- Confirm whether both heads need the same pattern or different custom GOBO graphics.

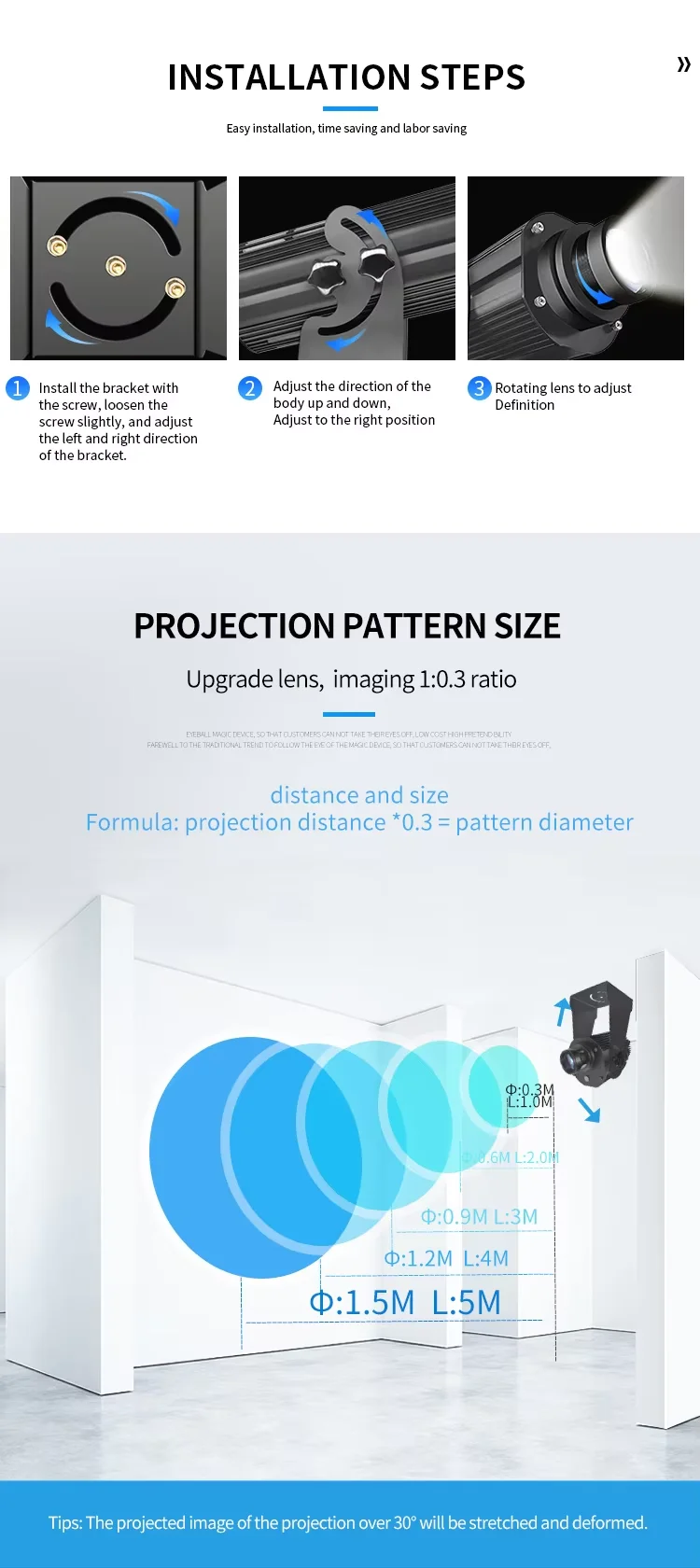

- Check mounting height and beam direction before choosing lens ratios.

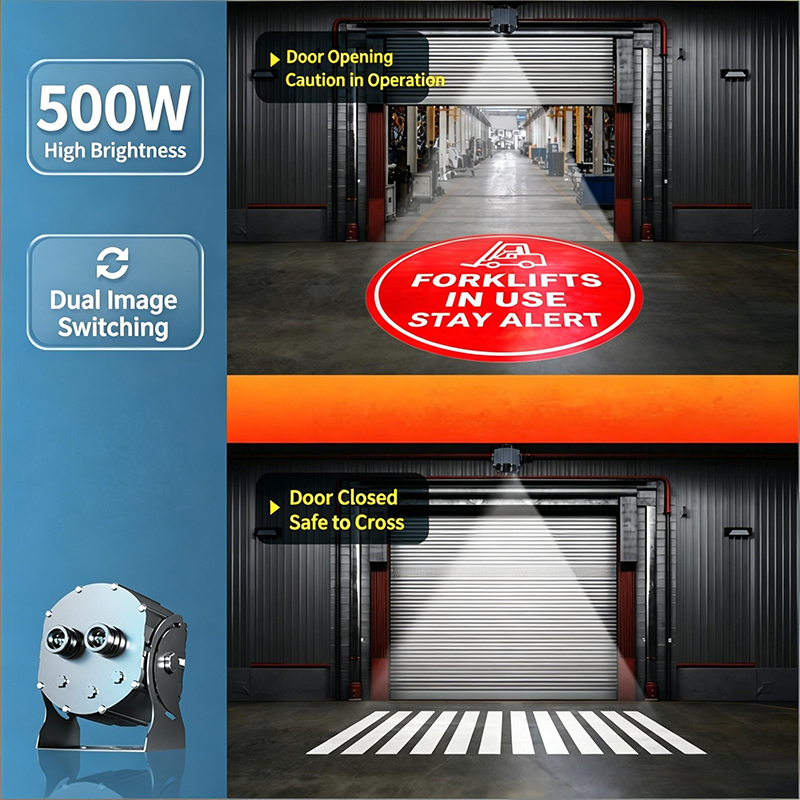

- For longer outdoor projection distance, compare this model with the 500W single-head zebra projector.
Buyer FAQ
When should I choose a double-head zebra crossing projector?
Choose the double-head model when one fixture needs to cover two directions, a wider crossing, a warehouse intersection or a forklift lane where traffic approaches from more than one side.
How is this different from a single-head 300W zebra projector?
A single-head model is better for one crossing or one projected direction. The double-head model is for two-way coverage and intersection layouts where one projected mark is not enough.
What projection distance does the 300W configuration support?
The listed 300W configuration supports an optimal projection distance of 1-35 m, depending on lens choice, mounting height and ambient brightness.
Can the two projected patterns be customized?
Yes. Confirm the required zebra, caution or custom warning graphics before production so each head can match the actual traffic layout.
