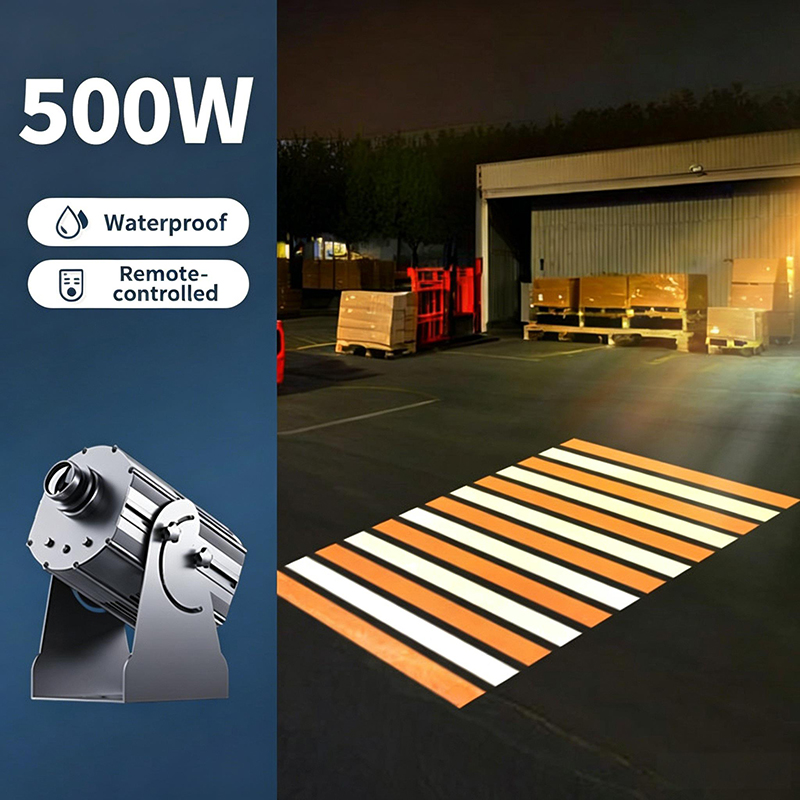

500W Zebra Crossing Projector for Long Distance Safety Marking
- Power class: 500W / 700W high-output projector options
- Use: long-distance zebra crossing and traffic safety marking
- Light source: genuine Osram LEDs with 35,000-40,000 lm on 500W model
- Outdoor rating: IP65 housing for industrial rain protection
- Projection distance: 6-120 m for 500W configuration
- Cooling: extra-large copper heat pipes with dual 90 mm fans
| Power options | 500W / 700W |
|---|---|
| 500W output | 35,000-40,000 lumens, 30-36V forward voltage, 14.9 kg fixture weight |
| Projection distance | 6-120 m for 500W configuration |
| LED chips | Genuine Osram LEDs |
| Lens options | 0.2 at 11 degrees / 0.3 at 17 degrees / 0.6 at 36 degrees / 1 at 44 degrees |
| GOBO | 56 mm GOBO, lens focal ratio 1:0.3 m |
| Protection | IP65, -40C to +60C operating temperature |
| Cooling | Extra-large copper heat pipes with dual 90 mm pressurized cooling fans |
Long-Distance Zebra Marking for Large Industrial Areas
This 500W zebra crossing projector is built for larger safety zones where a lower-power projector may not provide enough brightness or distance. It is used for loading yards, wide warehouse lanes, outdoor factory roads and high-risk traffic areas that need a visible projected crossing mark.
Selection Notes
- Use this 500W model when projection distance, ambient brightness or image size exceeds the standard 300W use case.
- Select the lens by distance: narrower angles for longer throws, wider angles for nearby large marks.
- Confirm mounting structure and cooling clearance because the 500W fixture is heavier than smaller models.
- For two-direction intersections, compare this model with the double-headed zebra caution projector.
Buyer FAQ
When should I choose the 500W zebra crossing projector?
Choose the 500W model for larger warehouse lanes, loading yards, outdoor industrial roads or applications that need longer projection distance than a standard 300W setup.
What projection distance does the 500W configuration support?
The listed 500W configuration supports an optimal projection distance of 6-120 m, depending on the selected lens, image size and ambient light.
Why does this model use larger cooling?
The 500W model produces higher output, so it uses extra-large copper heat pipes and dual 90 mm pressurized cooling fans to manage heat under industrial use.
How is this page different from the 300W zebra projector?
The 500W page is focused on long-distance and large-area safety marking, while the 300W page is better for standard factory crosswalks and medium-distance warehouse traffic zones.
