Clear floor markings are important for parking lots, garages, warehouses, and factories. They help drivers follow the right path and make work areas easier to manage. However, traditional painted lines may wear out over time and require regular maintenance. A laser projection system offers another way to show clear lines directly on the floor.

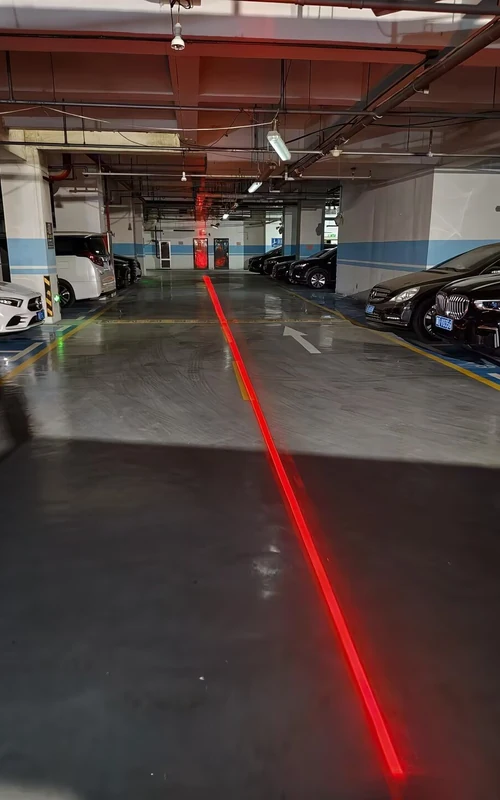

A red line projection laser can project a bright red line onto the ground to mark driving routes, parking areas, safety zones, and working boundaries. By choosing the right power and lens ratio, users can get the line length they need for their space.
In this article, we share a customer case from the United States and explain how to choose a suitable laser projector for a parking lot.
1. Customer Requirement: A 10-Meter Red Line in a Parking Lot
In October 2026, a customer from the United States contacted us about a parking lot guidance project. The customer needed a red laser line projector installed at a height of 3 meters. The required projection length was 10 meters, and the customer wanted to know how many projection lights would be needed.
The main requirements were clear:
Projection color: Red
Installation height: 3 meters
Required line length: 10 meters
Application: Parking lot guidance
Lighting conditions: Relatively low ambient light
Based on these details, we needed to select a projector that could create a line long enough for the parking area while providing good visibility under the site’s lighting conditions.The goal was not simply to choose a powerful light. The lens ratio, installation height, and ambient light also had to be considered.
2. How to Choose the Right Red Line Projection Laser
When choosing a red line projection laser, three main factors should be considered: laser power, projection ratio, and installation height.
Laser Power: 10W, 20W, or 30W
Our laser line projection lights are available in 10W, 20W, and 30W options. Different power levels can suit different working environments and projection requirements.
A 10W model may be suitable for some indoor applications with shorter projection distances or lower visibility requirements. A 20W model offers a higher-power option for projects that need a longer line or better visibility. A 30W model may be considered for more demanding applications, depending on the installation conditions and required line appearance.However, higher power does not automatically mean a better result. The right choice depends on the projection distance, the floor surface, ambient lighting, and the desired line width and brightness.For this parking lot project, the customer needed a 10-meter line from a height of 3 meters. Since the surrounding lighting was relatively low, we recommended a 20W red laser line projector.
Lens Ratio: 1:3 or 1:4
The lens ratio determines how the projected line length changes with installation height.
For example, a 1:3 projection ratio produces approximately 3 meters of line length for every meter of installation height. A 1:4 ratio produces approximately 4 meters of line length for every meter of height.
The basic calculation is:
Projected line length = Installation height × Projection ratio
For a projector installed at 3 meters:
With a 1:3 ratio: 3 × 3 = 9 meters
With a 1:4 ratio: 3 × 4 = 12 meters
Because the customer needed a line of at least 10 meters, the 1:4 lens ratio was the better match.This calculation gives an estimated line length. The final result may vary depending on the lens design, mounting angle, floor position, and installation conditions.
3. Our Solution: A 20W Red Laser Line Projector with a 1:4 Lens
After reviewing the customer’s requirements, we recommended a 20W red laser line projector with a 1:4 lens ratio.At an installation height of 1 meter, this configuration can project a red line approximately 4 meters long. At the customer’s required height of 3 meters, the estimated line length is:3 meters × 4 = 12 meters，This provides a projected line of approximately 12 meters, which meets the customer’s 10-meter requirement and allows some extra coverage.
The 20W power option was selected for the customer’s relatively low ambient light conditions. The 1:4 lens ratio helped us achieve the required line length without increasing the installation height.For this application, one correctly selected projector can provide the required line length in the specified projection direction. The final number of units for a complete parking lot depends on the number of lines, their positions, and the total area that needs to be marked.
4. Where Can a Floor Laser Line Projector Be Used?
A floor laser projector can be used in many indoor and outdoor work areas where visible line markings are needed.
Parking Lots and Parking Garages：A red laser line can help show driving routes, separate traffic areas, and highlight boundaries. It can also support visual guidance in parking garages where clear floor markings are important.

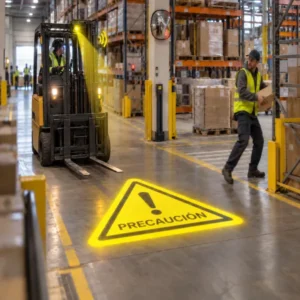

Warehouses：In warehouses, projected lines can help define forklift routes, storage areas, and walking paths. This makes it easier for workers to identify different zones.
Factories and Workshops：Production areas often need clear boundaries around machines, workstations, and material handling routes. Laser projection can provide a flexible way to display these lines.
Safety and Traffic Guidance：A projected line can serve as a visual reminder for drivers and workers. Depending on the site layout, it may help identify restricted areas or guide movement through busy spaces.
5. Why Consider a Floor Marking Laser Line Projector?
Compared with painted floor markings, a floor marking laser line projector can offer several practical benefits.First, it can display a line without applying paint directly to the floor. This may reduce the need for repainting when the layout changes.Second, the projection length can be adjusted by selecting a suitable lens ratio and installation height. This helps users match the equipment to different site requirements.Third, the projected line can provide a clear visual reference for drivers and workers. It is particularly useful in locations where floor guidance needs to be easy to see.Before installation, it is important to check the floor color, surface condition, ambient lighting, mounting position, and viewing angle. These factors can affect how clearly the line appears.
Choosing the right red line projection laser starts with understanding the application, installation height, required line length, and lighting conditions.
In our US customer case, a 20W red laser line projector with a 1:4 lens ratio was recommended for a parking lot that required a 10-meter line from a height of 3 meters. The estimated projection length of 12 meters met the customer’s requirement and provided additional coverage.
If you are looking for a laser projection solution for a parking lot, warehouse, or factory, share your installation height, required line length, projection color, and working environment with our team. We can help you evaluate the suitable power and lens ratio for your project.
