Can safety projectors stay clear when a warehouse floor is lit to 5,000 lux and the unit hangs 12 meters above it? Yes, but power alone does not give a reliable answer. At this height, safety projectors must be selected around image size, floor color, lens angle, and mounting position.
For this demanding condition, a 700W industrial projection light is the recommended choice. The Noparde selection guide places it in a 12–18 meter mounting range. Designed for longer distances, larger images, and strong ambient light, it provides useful brightness reserve for clear warning graphics at 12 meters.
For compact signs on a light, matte floor, a 500W model is also practical at 12 meters with a narrow lens. It balances output, energy use, and image size. At 5,000 lux or for a larger graphic, 700W provides more brightness and installation flexibility. These two safety projectors let warehouses match performance to the site.
Why Do Safety Projectors Face a Hard Test Here?
Lux measures how much surrounding light reaches the floor. When that level rises, the projected image has less contrast against its background. A high mounting point creates another challenge: as the image becomes larger, the available light is spread over a wider area.
That is why a warehouse safety projector cannot be chosen by wattage alone. Floor color, surface finish, image size, viewing angle, dust, and nearby lamps all affect the result. A light gray matte floor normally gives better contrast than dark, glossy concrete. Surface color, ambient light, mounting height, and projection distance should therefore all be considered during product selection.
Comparing Safety Projectors at a 12-Meter Height
The following figures provide a practical starting point for matching projector power to mounting height, image size, and ambient light.
| Power | Suggested mounting range | Typical image size | Recommended use |
| 300W | 8–12 m | 120–180 cm | Moderate ambient light and compact graphics |
| 500W | 10–15 m | 180–250 cm | Brighter indoor areas and medium-sized graphics |
| 700W | 12–18 m | 200–300 cm | Strong ambient light, high mounting points, and larger graphics |
A 300–500W projector covers many common indoor layouts. The 300W model is well suited to moderate ambient light and mounting heights of up to 12 meters, while the 500W model delivers 35,000–40,000 lumens for brighter or larger work areas. For a 12-meter installation under 5,000 lux, the 700W version provides 50,000–60,000 lumens and greater brightness reserve. This product range lets buyers match output, image size, and installation height without oversizing every project.
What Should Buyers Check Before Ordering?
The best safety projector for high ambient light is the one configured for the exact site, not simply the unit with the largest number on its label. Providing clear project information helps the supplier recommend the right power and lens more quickly.
Buyers should provide:
Measured floor illumination during normal working hours
Exact mounting height and horizontal projection distance
Required image width and length
Floor color, finish, and reflectivity
Indoor or outdoor use, voltage, and daily operating hours
Photos or videos taken from normal driver and pedestrian viewpoints
This information also helps with lens selection. The 500W and 700W models offer beam angles from 11° to 44°. A narrow beam concentrates more light in a compact warning area, while a wide beam creates a larger projected image. Choosing the right lens makes better use of the available output and improves the overall visual effect.

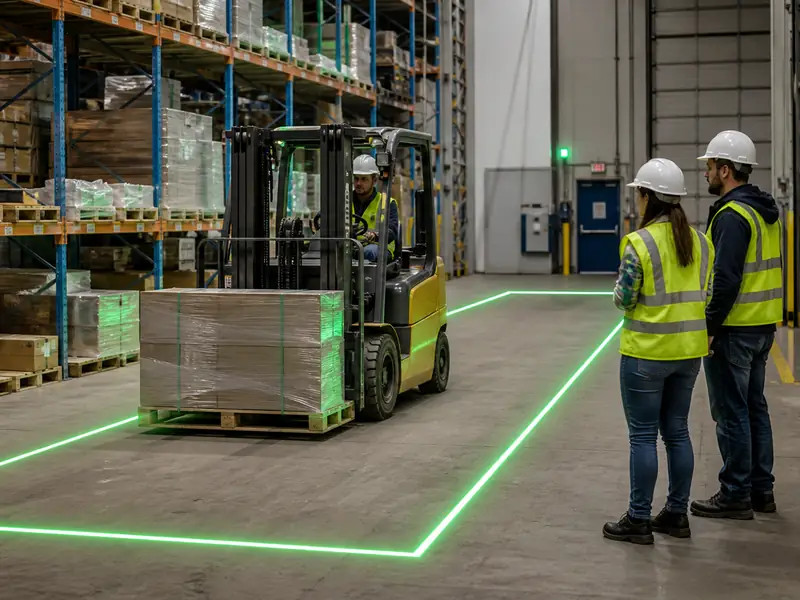

In May 2026, a warehouse buyer needed a forklift boundary line projected from 10 meters under 500 lux. The supplier tested the unit at the requested height and light level, then adjusted the green light source and lens. The result was a sharp, bright line that clearly marked the forklift boundary. The project shows how safety projectors can be tuned around mounting height, ambient light, and image requirements. Testing and optical adjustment before delivery gave the buyer a solution matched to the real warehouse.
Unlike painted lines or floor tape, projected markings are not directly worn by forklift tires. They can remain in the same position during daily traffic and floor cleaning. This makes projection useful for loading docks, aisle intersections, pedestrian crossings, machine areas, and other busy industrial locations.
How to Confirm the Best Configuration？
Before buying an industrial warning projector, provide the supplier with a video showing the ambient light, mounting position, target floor, and normal viewing direction. A lux meter reading can make product selection more accurate. The test graphic should use the same approximate size as the final warning sign.
For a safety projector visible at 5000 lux, visibility should be considered from the people’s real viewing positions. Can a forklift driver recognize the symbol while approaching the area? Can a pedestrian understand the warning quickly? Is the graphic clear from the side? These practical questions help determine the best combination of power, lens, image size, and mounting angle.
Projected warnings can support a complete warehouse traffic-safety plan. They work especially well alongside barriers, pedestrian routes, training, mirrors, alarms, and other safety controls. Clear graphics and simple messages allow workers to understand the warning quickly.
For safety projectors operating at 5,000 lux and a 12-meter mounting height, the 700W model offered by Noparde is the recommended choice. Its 12–18 meter suggested mounting range, 50,000–60,000 lumen output, and support for larger warning graphics make it well suited to bright warehouses and high mounting points.
Noparde’s 500W model is also a valuable option when the projected image is smaller, the floor provides good contrast, or energy use needs to be balanced with output. This gives customers a flexible choice between 500W and 700W according to the real project.
Well-chosen warehouse safety projectors can keep crossings and warning symbols in the same place without relying on floor tape or paint. The right industrial safety projector is not merely the highest-powered unit. It is the model that stays readable under measured light, at the required distance, and from the people’s normal viewing positions. This practical approach is the best way to select safety projectors for a busy, brightly lit facility.
